Direct datasources [Beta]

Direct datasources provide low-latency, low-throughput writes into the Ontology, including edits on object types backed by stream-based data. They allow data applications to write directly to the Ontology. Currently, only Pipeline Builder is a supported writer application.

Direct datasources trade throughput for more robust Ontology writing capabilities, including user edits on streams and time-based ordering. They work best for low-throughput workflows that require low latency for both data and edits, such as edits on streaming object types, or batch object types with small, frequent incremental builds where the end-to-end indexing latency from a source transaction to an object appearing in the Ontology is unacceptable.

Configure a direct datasource

Direct datasources are currently configured only in Pipeline Builder. Review the guidance in the Pipeline Builder documentation for more information.

Once deployed, the object type appears in Ontology Manager, and its objects are viewable in Insight and Object Explorer.

Debugging

Navigate between a direct datasource writer and its object type

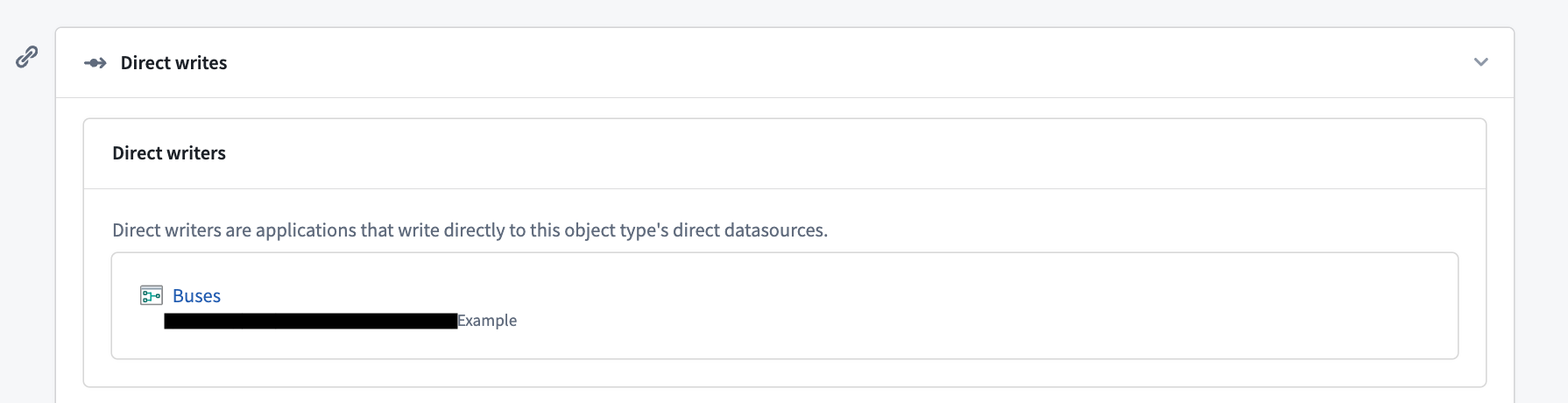

You can view the Pipeline Builder pipeline that wrote the edits to the Ontology for the direct datasource in the Datasources tab in Ontology Manager. Select the pipeline to navigate to it in Pipeline Builder.

Currently, only Pipeline Builder is a supported writer application.

Liveness

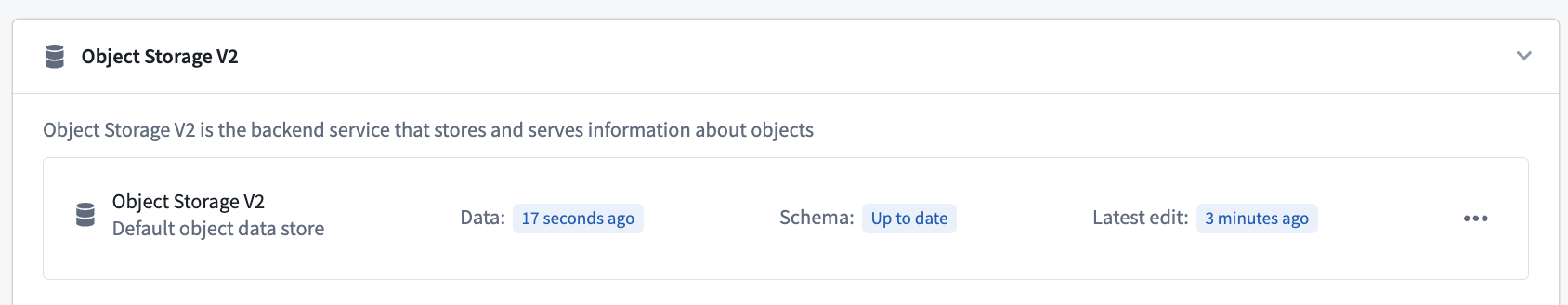

Data liveness is shown in the Datasources tab under Object Storage V2. Liveness helps you determine the freshness of the current object view:

• Data: The last direct write that was written to the Ontology.
• Schema Whether the current schema is up-to-date.
• Latest edit: The last edit that was written to the Ontology. If no edit has been written for the object type, this field is not displayed.

Stream metrics

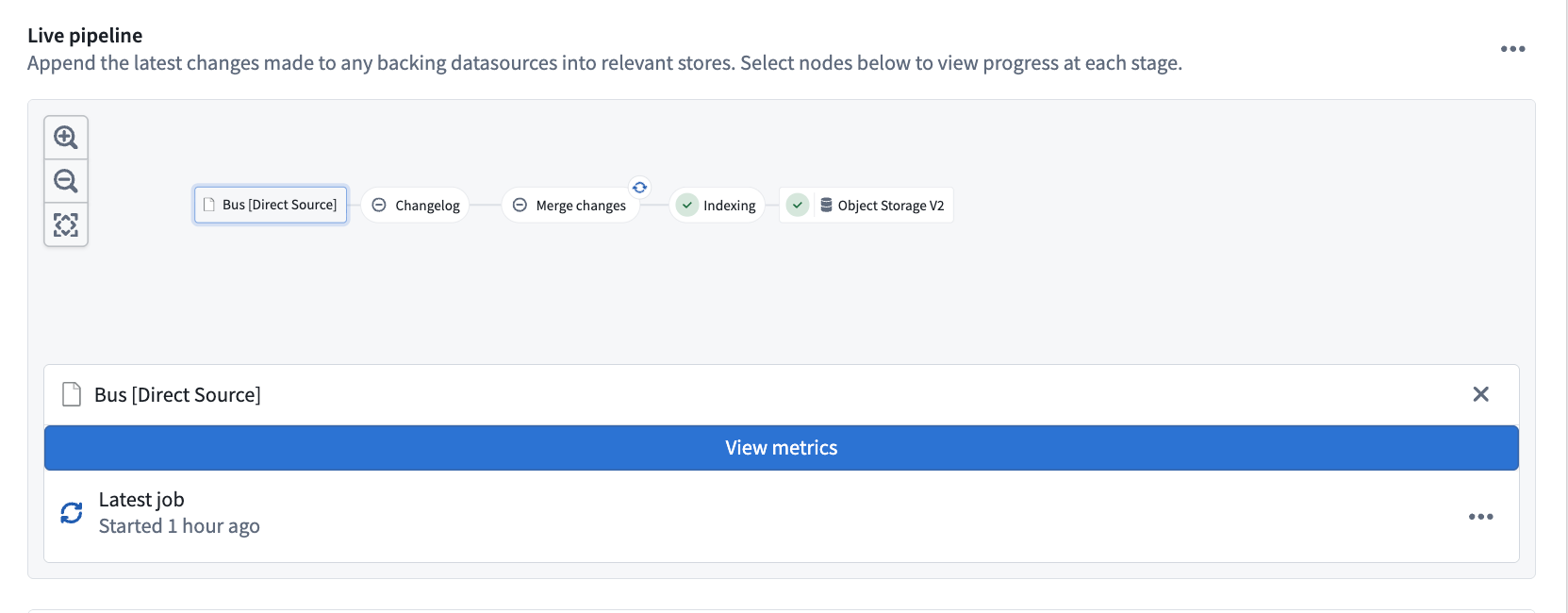

You can view stream metrics for the writing job orchestrated by Pipeline Builder, or for the currently running job, in Ontology Manager. Navigate to Object Storage V2 of the Datasources tab of an object type, then select the direct datasource node in the live pipeline.

• Select the View metrics banner to view logging, job history, and other metrics for the Flink streaming job.
• To view information about the currently running job, select the ellipses on Latest job, then View job details.

FAQ

After I deploy the pipeline, the streaming job consistently fails before it can start. Is this expected?

Yes. The job can fail before submission on first deployment, or when replaying the pipeline with reset outputs, because the Funnel setup process can cause a timeout. If the job exceeds its retry limit, rebuild the failed job. When replaying, you do not need to deploy with replay again; triggering another replay starts another round of setup by Funnel, which can cause another timeout.

I replayed my streaming pipeline and now all of my objects are missing. Why is this happening?

This is a current limitation of direct datasources. The existing object view is wiped completely to serve the new view immediately. Because the swap is instant, the new view is not yet fully populated, so the object view can be incomplete or empty. Background replays to address this limitation are in development.

I am missing objects that I expect to exist in the Ontology. How can I debug this?

First, check data liveness. If the Data liveness is stale (30 minutes old, for example), the source stream likely stopped. Check the stream metrics or the current job.

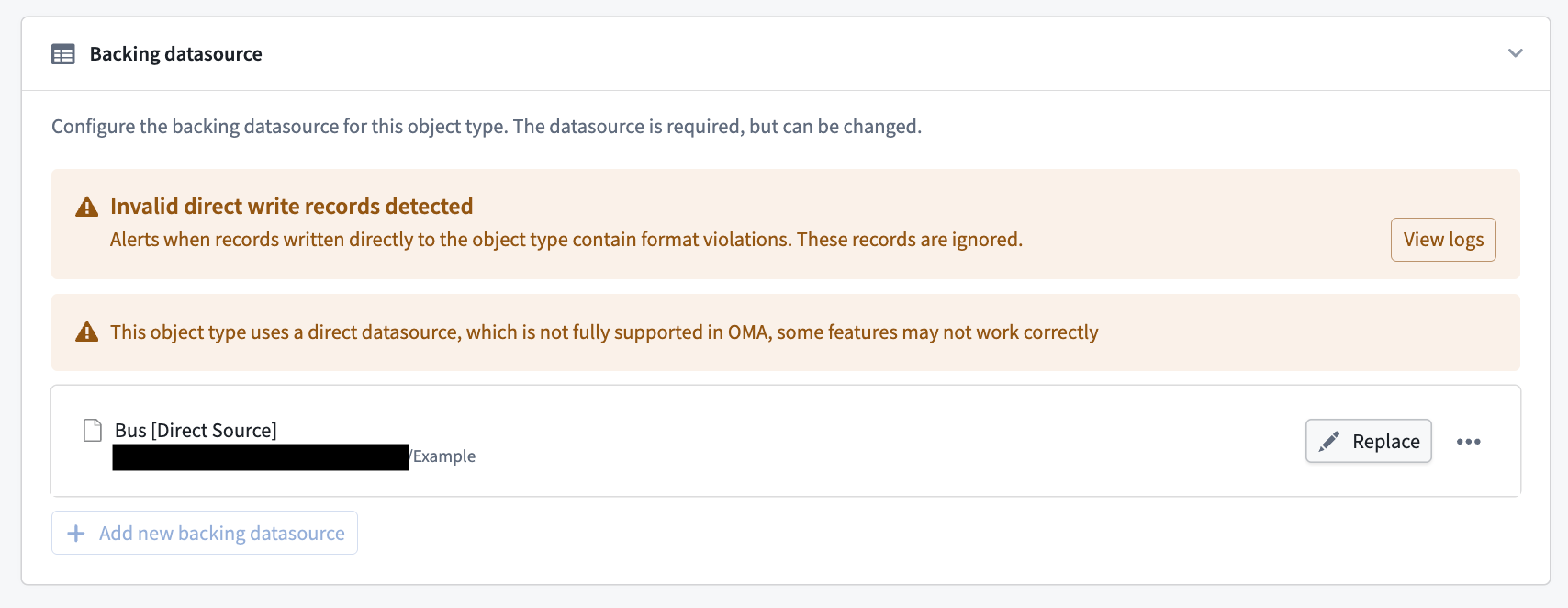

If Data is up to date, invalid writes were most likely rejected by Funnel. A banner also appears in Ontology Manager under the Datasources tab to indicate rejected writes.

In some cases, Data can be stale and be missing because of invalid writes, this means all writes after a certain point in time were rejected.
