Manually save derived series to the Ontology

The general derived series setup documentation described the process of preparing the logic resource used to manage the derived series. The codex template is a translation of the logic resource into a templatized format that allows the logic to be resolved across any root object as long as it has the correct inputs.

Using the steps below, we can manually add the derived series to the Ontology by adding references to the templatized logic on the time series property of the bound object type. Once added to the Ontology, the derived series will behave just like a raw time series and can be used across Palantir applications.

1. Access the codex template ID

Codex templates are hidden Palantir resources used to store templatized derived series logic. You will need to find the codex template RID of your derived series before proceeding.

First, find your derived series resource. You can search for it by name, or locate the folder you specified in the Save derived series dialog. Open the Overview tab to view the derived series management page.

Copy the Template RID from the Derived series details section.

2. Bind derived series to an object type in the Ontology

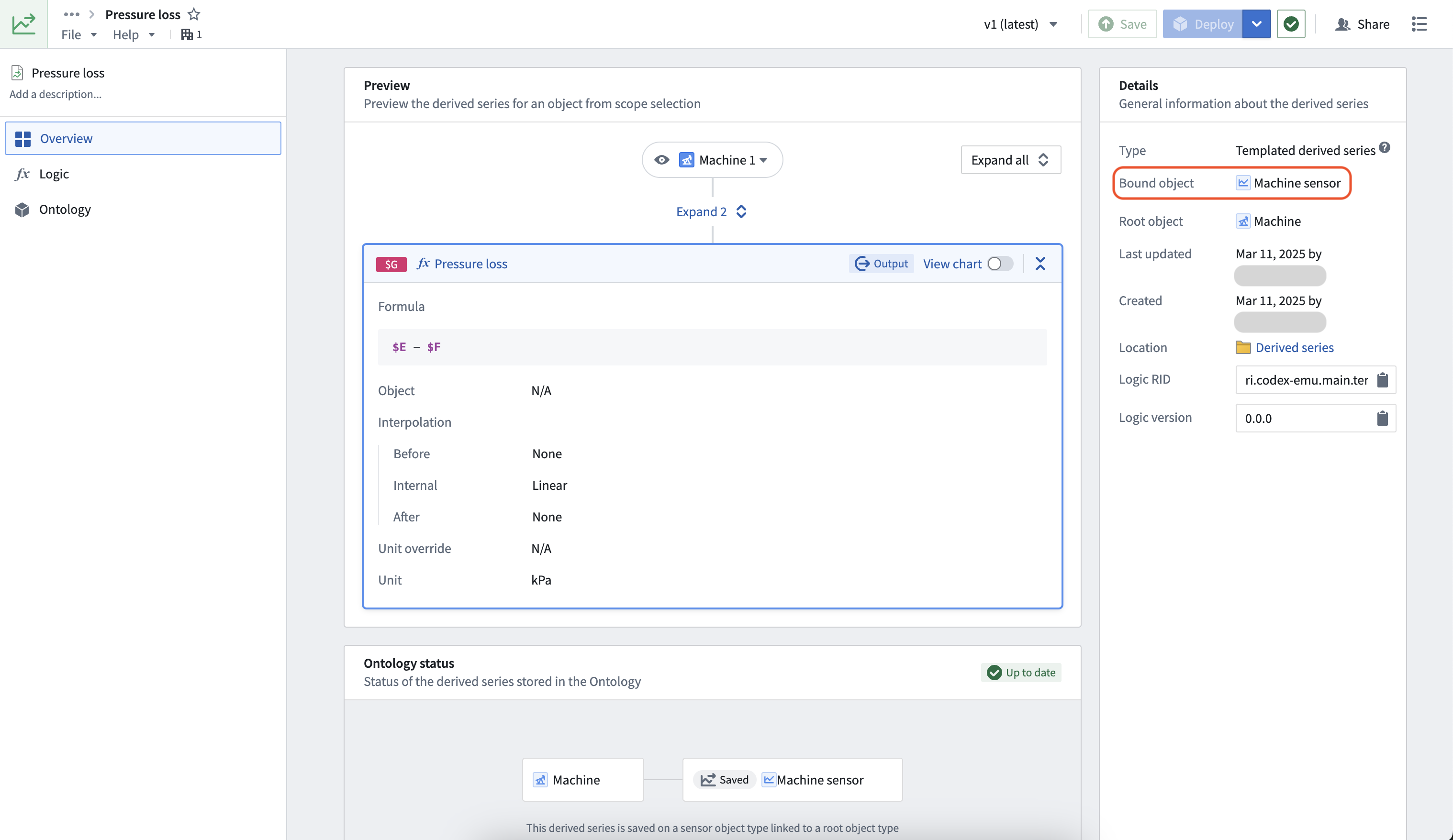

The time series bound object type is displayed in the Details section on the right of the derived series management page.

Derived series use similar time series properties (TSPs) as raw time series. However, instead of a series ID, the resource identifier (RID) of the codex template is used as the time series property value. Review the options below, and choose whether to bind the derived series to a root or sensor object type.

Option 1: Bind to a root object type

To bind a derived series to the root object type, create a new string type column (or use an existing column) in the root object type's backing data source and populate it with the codex template RID. In the example below, the Delta pressure derived series template RID is added across ten machines.

Navigate to Ontology Manager, and map the column containing the new codex template RIDs to a time series property (if it is not already mapped). Review how to set up time series properties for more information.

Option 2: Bind to a sensor object type

You must create one sensor object for every root object to which this derived series will apply.

Enter the codex template RID into a column that backs the TSP of the bound object type’s backing data source. In our example, rows 1 through 10 refer to raw series IDs while rows 11 through 15 refer to a derived series through a codex template RID. In the example below, five sensor objects containing the Delta pressure derived series template RID are added.

If you prefer to reference a specific version of logic, your TSP value should instead look like the following:

{"templateRid":"ri.codex-emu.main.template.8da5f759-4b...","templateVersion":"0.0.x"}

Derived series property data sources

Currently, data sources for derived series do not need to be listed in the containing time series properties data sources.
