Kafka

Connect Foundry to Kafka to read data from a Kafka queue into a Foundry stream in realtime.

Supported capabilities

Capability	Status
Exploration	🟢 Generally available
Streaming syncs	🟢 Generally available
Streaming exports	🟢 Generally available

Data model

key (binary)	value (binary)
London	{"firstName": "John", "lastName": "Doe"}
Paris	{"firstName": "Jean", "lastName": "DuPont"}

The Kafka connector does not parse message contents, and data of any type can be synced into Foundry. All content is uploaded, unparsed, under the value column. Use a downstream streaming transform (for example, parse_json in Pipeline Builder) to parse the data. The key column will display the key that was recorded in Kafka along with the message. If the message does not include a key, the value will be null.

Performance and limitations

The connector always uses a single consumer thread regardless of the number of partitions on the source Kafka topic.

Streaming syncs are meant to be consistent, long-running jobs. Any interruption to a streaming sync is a potential outage depending on expected outcomes.

Currently, streaming syncs have the following limitations:

Jobs from agent connections restart during maintenance windows (typically once a week) to pick up upgrades. Expected downtime is less than five minutes.
Jobs from direct connections restart at least once every 48 hours. Expected downtime is single-digit minutes (assuming resource availability allows jobs to restart immediately).

We recommend running streaming syncs on an agent connection for improved performance, bandwidth, and availability.

Setup

Open the Data Connection application and select + New Source in the upper right corner of the screen.
Select Kafka from the available connector types.
Choose to use a direct connection over the Internet or to connect through an intermediary agent.
- We recommend connecting through two agents per source to successfully set up your Kafka connector and reduce downtime. Be sure the agents do not have overlapping maintenance windows.
Follow the additional configuration prompts to continue the set up of your connector using the information in the sections below.

Learn more about setting up a connector in Foundry.

If you do not see Kafka on the connector type page, contact Palantir Support to enable access.

Bootstrap servers

Parameter	Required?	Default	Description
Bootstrap servers	Yes	No	Add Kafka broker servers in the format `HOST:PORT`, one per line.

Authentication

Select a credential method to authenticate your Kafka connection: SSL, Username/Password, Azure AD, Kerberos, or NONE.

Configured credentials must allow the following operations:

Topic resource:
- Read for streaming syncs and exploration
- Write for streaming exports

SSL

SSL authentication corresponds to the standard Kafka SSL and SASL_SSLprotocols.

To authenticate with SSL, complete the following configuration options:

Parameter	Required?	Default	Description
Endpoint identification algorithm	Yes	HTTPS	`HTTPS`: Verify that the broker host name matches the host name in the broker's certificate. `NONE`: Disable endpoint identification.
Two-way SSL enabled	No	Disabled	Enable mutual TLS (mTLS); additional configuration required.
Use SASL	No	No	Enable SASL authentication.

If enabling mutual TLS (two-way SSL), add your private key password:

Parameter	Required?	Default	Description
SSL key password	Yes	No	Password required to decrypt private key.

If enabling SASL authentication, complete additional configuration:

Parameter	Required?	Default	Description
SASL mechanism	No	No	Select the algorithm with which to encrypt credentials.
saslJaasConfigUsername	Yes	No	Username
SASL JAAS config password	Yes	No	Password
SASL client callback handler class	Yes	No	Shows the default callback handler for SASL clients. See the Java SASL API documentation ↗ for more information about SASL callback handlers.

OAuth 2.0

OAuth authentication uses the OAuth 2.0 protocol. Only the Client Credentials Grant flow is currently supported.

To use the OAuth 2.0 protocol for authentication, complete the following configuration options:

Parameter	Required?	Default	Description
Client ID	Yes	No	The ID of your application requesting authentication
Client Secret	Yes	No	The shared secret between the server and your application
Token Endpoint URI	Yes	No	The Uniform Resource Identifier (URI) of the server that grants access/ ID tokens
Scopes	No	No	Connecting via OAuth to Kafka, or specific Kafka topics, may require requesting a collection of scopes. Scopes are arbitrary string values configured in the authentication provider. For example, consumers may need to request one of (kafka-topics-read, kafka-topics-list) in their authentication request to determine the level of access to Kafka they receive.
SASL Extensions	No	No	Some Kafka servers, for example Confluent Cloud, may require SASL extensions ↗ to be configured, which would be key-value pairs specific to that server platform.

Azure AD

The Azure AD authentication mode applies to the Kafka interface for Azure Event Hubs. This mode requires an Azure AD service principal. Review the Azure documentation ↗ to learn how to create a service principal and set up access to Event Hubs.

Parameter	Required?	Default
Tenant ID	Yes	No
Client ID	Yes	No
Client secret	Yes	No

The Kafka interface for Azure Event Hubs can also be accessed through a SAS Token ↗. To authenticate with a SAS token, select Username/Password authentication, with username $ConnectionString (no quotes) and password your EventHubs connection string.

None

Corresponds to Kafka's standard PLAINTEXT protocol.

We highly discourage configuring the connector without authentication or SSL as this will pass unencrypted data between the connector and the Kafka broker. Only use this configuration within secure networks.

Networking

The connector must have access to the host of the Kafka broker. If using a direct connection, create DNS egress policies for all bootstrap server hosts.

Certificates and private keys

You may need to configure additional client or server certificates and private keys for SSL and TLS.

SSL

SSL connections validate servers certificates. Normally, SSL validations occur through a certificate chain; by default, both agent and direct connection runtimes trust most standard certificate chains. However, if the server to which you are connecting has a self-signed certificate, or if hostname validation intercepts the connection, the connector must trust the certificate. Contact your Kafka administrator for the right certificate to use.

Learn more about using certificates in Data Connection.

Mutual TLS (mTLS)

Your Kafka cluster might require that both the server and client authenticate through mTLS. To enable mTLS, you must configure the following:

Follow the steps below to configure a client private key based on the connector run type.

Configure client private key for agents

If connecting via an agent, follow the instructions on how to add a private key

Configure client private key for direct connections

If connecting directly, upload your private key in the Configure client certificates and private key section of the connector configuration page. Use the alias kafka in the pop-up that appears, then add the private key and client certificate.

Interface showing option to configure client certificates and private key

Pop-up where users can enter alias, private key, and client certificate

Sync data from Kafka

Learn how to set up a sync with Kafka in the Set up a streaming sync tutorial.

Schema Registry integration

The Kafka Schema Registry functions as a centralized storage system, maintaining a versioned history of all schemas. The registry offers compatibility with Avro, Protobuf, and JSON schemas, and uses SerDes (Serializer/Deserializer) to facilitate conversions between schema formats and serialized data.

To leverage the Kafka Schema Registry effectively, it is necessary to register schemas for the relevant Kafka topics and append the Schema Registry URL to the source configuration. This adjustment empowers the connector to transform raw bytes into corresponding data types.

For instance, a standard extraction would typically ingest raw bytes from Kafka into Foundry, as depicted below:

Standard binary Kafka extract.

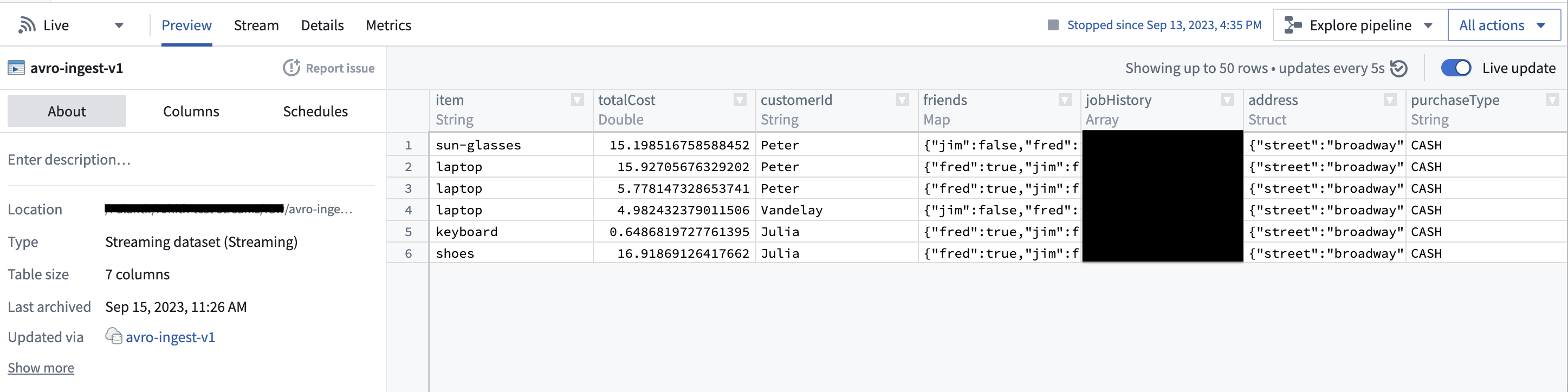

However, with the Schema Registry configured, the connector can discern the underlying schema of the bytes and transform them into first-class Foundry types, as shown here:

Avro Kafka extract.

This feature can significantly streamline downstream pipelines by eliminating the need for cumbersome type conversion. Moreover, it elevates data consistency guarantees, given that the Schema Registry offers centralized schema management and compatibility checks as schemas evolve.

Export data to Kafka

The connector supports exporting streams to external Kafka clusters via Data Connection.

To export to Kafka, first enable exports for your Kafka connector. Then, create a new export.

Export configuration options

Option	Required?	Default	Description
`Topic`	Yes	N/A	The Kafka topic to which you want to export.
`Linger milliseconds`	Yes	0	The number of milliseconds to wait before sending records to Kafka. Records that accrue during the waiting time will be batched together when exported. This setting defaults to 0, meaning that records will be sent immediately. However, this default may result in more requests to your Kafka instance.
`Key column`	No	Undefined	The column from the Foundry stream that you wish to use as the Key when publishing records to Kafka. Null keys are not supported; ensure the selected column is populated for all records in the stream being exported.
`Value column`	No	Undefined	The column from the Foundry stream that you wish to export. If not specified, all fields from the row will be serialized as bytes and exported to Kafka in the body of the message.
`Enable Base64 Decode`	No	Disabled	Binary data in Foundry streams is Base64 encoded when stored internally. When enabled, this flag will result in binary data being decoded before exporting. This may only be enabled if both `Key column` and `Value column` are specified.

Export task configuration (legacy)

We do not recommend exporting to Kafka through export tasks. If possible, existing export tasks should be migrated to use our recommended export capability. The documentation below is intended for historical reference.

To begin exporting data using export tasks, navigate to the Project folder that contains the Kafka connector to which you want to export. Right select on the connector name, then select Create Data Connection Task.

In the left side panel of the Data Connection view:

Verify the Source name matches the Kafka connector you want to use.
Add an Input called dataset of type Streaming dataset. The input dataset is the Foundry dataset being exported.
Add an Output called dataset of type Streaming export. The output dataset is used to run, schedule, and monitor the task.
Finally, add a YAML block in the text field to define the task configuration.

Use the following options when creating the YAML:

Option	Required?	Default	Description
`maxParallelism`	Yes	No	The maximum allowed number of parallel threads used to export data. Actual number of threads is dictated by the number of partitions on the input Foundry stream (if lower than `maxParallelism`).
`topic`	Yes	No	The name of the topic to which data is pushed.
`clientId`	Yes		The identifier to use for the export task. The identifier maps to the Kafka `client.id`. Review the Kafka documentation ↗ for more information.
`batchOptions`	Yes	No	See `batchOptions` configuration below.
`keyColumn`	No	No	Name of a column in input streaming dataset. Values in this column are used as the key in exported messages. Omitting this property will export `null` values for the key.
`valueColumn`	No	No	Name of a column in input streaming dataset. Values in this column are used as the value in exported messages. Omitting this property will export all columns (as a stringified JSON object) under the `value` field.
`enableIdempotence`	No	`true`	Review the Kafka documentation ↗ for more information.
`useDirectReaders`	Yes	No	Always set `false`. Configure per the example.
`transforms`	Yes	No	See the example configuration below.

Configure batchOptionsusing the following options:

Option	Required?	Default	Description
`maxMilliseconds`	Yes	No	The maximum duration (in milliseconds) to wait before writing available rows to the output topic. Lower this value to reduce latency, increase to reduce network overhead (number of requests). This value is used unless the batch hits the `maxRecords` limit first.
`maxRecords`	Yes	No	The maximum number of messages to buffer before writing to the output topic. Lower this value to reduce latency, increase to reduce network overhead (number of requests). This value is used unless the batch hits the `maxMilliseconds` limit first.

The following shows an example export task configuration:

Copied!1
2
3
4
5
6
7
8
9
10
11
12
13
14
type: streaming-kafka-export-task
config:
  maxParallelism: 1
  topic: test-topic
  clientId: client-id
  keyColumn: key
  valueColumn: value
  batchOptions:
    maxMilliseconds: 5000
    maxRecords: 1000
transforms:
  transformType: test
  userCodeMavenCoords: []
useDirectReaders: false

After you configure the export task, select Save in the upper-right corner.
