BigQuery

Connect Foundry to Google BigQuery to read and sync data between BigQuery tables and Foundry datasets.

Supported capabilities

Data model

Tables from BigQuery are imported into Foundry, and the data is saved in Avro format. Columns of type BIGNUMERIC and TIME are not supported at the time of import.

When exporting data from Foundry to BigQuery, all column types except for MAPS, STRUCTS and ARRAYS are supported.

Performance and limitations

When syncing more than 20GB of data from a non-standard BigQuery table, temporary storage tables must be enabled. A single sync can import data up to the size available on the disk. For syncs run through direct connections, this is typically limited to 600GB. Use incremental syncs to import larger tables.

Setup

1. Open the Data Connection application and select + New Source in the upper right corner of the screen.
2. Select BigQuery from the available connector types.
3. Choose to use a direct connection over the Internet or to connect through an intermediary agent.
4. Follow the additional configuration prompts to continue the setup of your connector using the information in the sections below.

Learn more about setting up a connector in Foundry.

Authentication

The following Identity and Access Management (IAM) roles are required to use a BigQuery connector:

Read BigQuery data:

• BigQuery Read Session User: Granted on BigQuery Project
• BigQuery Data Viewer: Granted on BigQuery data to read data and metadata
• BigQuery Job User (optional): Granted to ingest views and run custom queries

Export data to BigQuery from Foundry:

• BigQuery Data Editor: Granted on BigQuery dataset or Project
• BigQuery Job User: Granted on BigQuery Project
• Storage Object Admin: Granted on bucket if data is exported with Google Cloud Storage

Use temporary tables:

• BigQuery Data Editor: Granted for BigQuery Project if dataset is automatically created by the connector
• BigQuery Data Editor: Granted for the provided dataset as a place to store temporary tables

Learn more about required roles in the Google Cloud documentation on access control ↗.

Choose from one of the available authentication methods:

• GCP instance account: Refer to the Google Cloud documentation ↗ for information on how to set up instance-based authentication.

  • Note that GCP instance authentication only works for connectors operating through agents that run on appropriately configured instances in GCP.
  • Note that virtual tables do not support GCP instance authentication credentials.

• Service account key file: Refer to the Google Cloud documentation ↗ for information on how to set up service account key file authentication. The key file can be provided as JSON or PKCS8 credentials.

• Workload Identity Federation (OIDC): Follow the displayed source system configuration instructions to set up OIDC. Refer to the Google Cloud Documentation ↗ for details on Workload Identity Federation and our documentation for details on how OIDC works with Foundry.

Networking

The BigQuery connector requires network access to the following domains on port 443:

• bigquery.googleapis.com
• bigquerystorage.googleapis.com
• storage.googleapis.com
• www.googleapis.com

Additional access may be required to the following domains:

• oauth2.googleapis.com
• accounts.google.com

If you are establishing a direct connection between Foundry on Google Cloud Platform (GCP) with BigQuery on GCP, you must also enable the connection through the relevant VPC service controls. If this connection is required for your setup, contact Palantir Support for additional guidance.

Connection details

The following configuration options are available for the BigQuery connector:

* Temporary tables must be enabled when registering BigQuery views ↗ via virtual tables.

Sync data from BigQuery

To set up a BigQuery sync, select Explore and create syncs in the upper right of the source Overview screen. Next, select the tables you want to sync into Foundry. When you are ready to sync, select Create sync for x datasets.

Learn more about source exploration in Foundry.

Temporary tables

When syncing more than 20GB of data from a non-standard BigQuery table, temporary tables must be enabled. Temporary tables allow BigQuery to import results from large query outputs, import data from views and other non-standard tables, and allow for large incremental imports and ingests.

To use temporary tables, enable Settings for temporary tables in the connector configuration.

• Automatically create dataset: Select this option to create a Palantir_temporary_tables dataset to store temporary tables. This option requires the BigQuery account to have the BigQuery Data Editor role on the Project.
• Provide dataset to use: Select this option to manually add the Project ID and Dataset name of the dataset you want to use to store temporary tables. This option requires the BigQuery account to have the BigQuery Data Editor role on the dataset provided.

Note that temporary tables must be enabled when using BigQuery views ↗ with virtual tables.

Configure BigQuery syncs

The BigQuery connector allows for advanced sync configurations for large data syncs and custom queries.

After exploring your available syncs and adding them to your connector, navigate to Edit syncs. From the Syncs panel to the left, find the sync you want to configure and select > to the right.

Import settings

Choose what data will be synced from BigQuery into Foundry.

Sync full table

Enter the following information to sync entire tables to Foundry:

Custom SQL

Any arbitrary query can be run, and the results will be saved in Foundry. The query output must be smaller than 20GB (the maximum BigQuery table size), or temporary table usage must be enabled. Queries must start with the keyword select or with. For example: SELECT * from table_name limit 100;.

Incremental syncs

Typically, syncs will import all matching rows from the target table, regardless if data changed between syncs or not. Incremental syncs, by contrast, maintain state about the most recent sync and only ingest new matching rows from the target.

Incremental syncs can be used when ingesting large tables from BigQuery. To use incremental syncs, the table must contain a column that is strictly monotonically increasing. Additionally, the table or query being read from must contain a column with one of the following data types:

• INT64
• FLOAT64
• NUMERIC
• BIGNUMERIC
• STRING
• TIMESTAMP
• DATE
• TIME
• DATETIME

Example: A 5 TB table contains billions of rows that we want to sync to BigQuery. The table has a monotonically increasing column called id. The sync can be configured to ingest 50 million rows at a time using the id column as the incremental column, with an initial value of -1 and a configured limit of 50 million rows.

When a sync is initially run, the first 50 million rows (ascending based on id) containing an id value greater than -1 will be ingested into Foundry. For example, if this sync was run several times and the largest id that was ingested during the last run of this sync was 19384004822, the next sync will ingest the next 50 million rows starting with the first id greater than 19384004822, and so on.

Incremental syncs require the following configurations:

Incremental syncs for custom queries

To enable incremental queries for custom query syncs, the query must be updated to match the following format:

SELECT * from table_name where incremental_column_name > @value order by incremental_column_name asc limit @limit

Export data to BigQuery

The connector can export to BigQuery in two ways:

• Through Google Cloud Storage as an intermediary store (recommended). See the section below on exporting via Cloud Storage for more information.
• Through BigQuery APIs see Reading data from local files ↗ for details on API used

Writing through APIs is suitable for a data scale of several million rows. The expected performance for this mode is to export one million rows in approximately two minutes. If your data scale range reaches billions of rows, use Google Cloud Storage instead.

Task configuration

To begin exporting data, you must configure an export task. Navigate to the Project folder that contains the connector to which you want to export. Right select on the connector name, then select Create Data Connection Task.

In the left side panel of the Data Connection view, verify the Source name matches the connector you want to use. Then, add an input dataset to the Input field. The input dataset must be called inputDataset, and it is the Foundry dataset being exported. The export task also requires one Output to be configured. The output dataset must be called outputDataset and point to a Foundry dataset. The output dataset is used to run, schedule, and monitor the task.

In the left panel of the Data Connection view:

1. Verify the Source name matches the connector you want to use.
2. Add an Input named inputDataset. The input dataset is the Foundry dataset being exported.
3. Add an Output named outputDataset. The output dataset is used to run, schedule, and monitor the task.
4. Finally, add a YAML block in the text field to define the task configuration.

Use the following options when creating the export task YAML:

Example task configuration:

Copied!
1
2
3
4
5
6
7
type: magritte-bigquery-export-task
config:
    table:
      dataset: datasetInBigQuery
      table: tableInBigQuery
      project: projectId #(Optional: Do not specify unless the Project for export differs from the Project configured for the connector.)
    incrementalType: SNAPSHOT | REQUIRE_INCREMENTAL

After you configure the export task, select Save in the upper right corner.

Append rows to output table

If you need to append rows to the destination table, you can use REQUIRE_INCREMENTAL rather than replacing the dataset.

Export via Cloud Storage (recommended)

To export via Cloud Storage, a Cloud Storage bucket must be configured in the connector configuration settings. Additionally, the Cloud Storage bucket must only be used for temporary tables for the connector so that any data temporarily written to the bucket is accessible to the least amount of users possible.

We recommend exporting to BigQuery via Cloud Storage rather than BigQuery APIs; Cloud Storage operates better at scale and does not create temporary tables in BigQuery.

Export via BigQuery APIs

The export job creates a temporary table alongside the destination table; this temporary table will not have extra access restrictions applied. Additionally, the SNAPSHOT export drops and recreates the table, meaning the extra access restrictions will also be dropped.

During an export via BigQuery APIs, data is exported to the temporary table datasetName.tableName_temp_$timestamp. Once the export is complete, rows are automatically transferred from the temporary table to the destination table.

You can share the destination table if the export is run in REQUIRE_INCREMENTAL mode. Running in SNAPSHOT mode recreates the table on each run, and the sharing would need to be reapplied.

Virtual tables

This section provides additional details around using virtual tables with a BigQuery source. This section is not applicable when syncing to Foundry datasets.

When using virtual tables, remember the following source configuration requirements:

• You must set up the source as a direct connection. Virtual tables do not support use of intermediary agents.
• Ensure that bi-directional connectivity and allowlisting is established as described in the Networking section of this documentation.
• If using virtual tables in Code Repositories, refer to the Virtual Tables documentation for details of additional source configuration required.
• Use service account key file credentials or Workload Identity Federation (OIDC). Instance-based authentication is not supported with virtual tables.
• Temporary tables must be enabled in order to register BigQuery views ↗, and the relevant roles must be added to the authentication credentials.

See the Connection details and Temporary tables section above for more details.

[1] To enable incremental support for pipelines backed by BigQuery virtual tables, ensure that Time Travel ↗ is enabled with the appropriate retention period. This functionality relies on Change History ↗ and is currently append-only. The current and added read modes in Python Transforms are supported. The _CHANGE_TYPE and _CHANGE_TIMESTAMP columns will be made available in Python Transforms.

Troubleshooting

Not found: Dataset <dataset> was not found in location <location>

BigQuery determines the location where a given query will be run based on either the inputs used in the query or where the results of the query are being stored. When temporary tables are used, the output is set to a temporary table in the temporary tables dataset; the location of this dataset will determine where the query is run. Ensure that all inputs of the sync and the temporary tables dataset are in the same region. If the Automatically create dataset. setting is enabled, use the Google Cloud console or Google's SDKs/APIs to determine the location of the dataset called Palantir_temporary_tables.

gRPC message exceeds maximum size

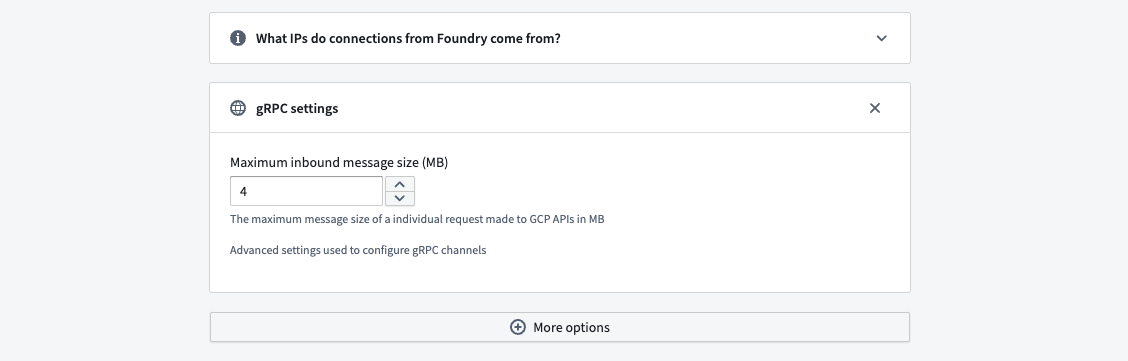

If syncing data with large content like JSON columns, the transfer may fail with the above error. Adjust BigQuery's Maximum inbound message size in gRPC Settings on the source to increase data transfer in a single API call. Remember, a single call fetches multiple rows, so setting it to the largest row size may not be enough.

You can find this configuration option by navigating to Connection Settings > Connection Details, then scrolling to More options and selecting gRPC Settings.
