    Edit object types

    Warning

    Editing an object type and its properties can have application-breaking consequences that can disrupt user workflows. Read the section below on potential breaking changes before proceeding with any object type or property edits.

    Potential breaking changes

    Object type without writeback

    Changes that require Object Storage V1 (Phonograph) to unregister and reregister the backing datasources of an object type will make the objects of that type unavailable in user applications during that reindex time; these changes are described below.

    The following changes will unregister and reregister (or delete) the backing datasources of an object type when saved:

    • Changing an object type’s backing datasource.
    • Changing the primary key of an object type.
    • Deleting an object type.

    When you try to save any of these changes, you will be warned about the potential impact on user applications.

    Warning: Reindexing will make objects unavailable

    For example, if an object type is used in a Workshop application, that Workshop application will be broken until the reindex completes. You can track the progress of the reindex for an object type in the Phonograph pane of its Datasources page.

    Tracking reindex in Phonograph

    Learn more about Object Storage V1 (Phonograph).

    Object type with writeback

    If an object type has writeback enabled, extra precaution should be taken when making edits to that object type. The history of edits made to an object type are stored in Object Storage V1 (Phonograph). Every time a writeback dataset is built, the history of edits is reapplied to get the final state of edited objects in the writeback dataset. When the backing datasources of an object type are unregistered from Object Storage V1 (Phonograph), the history of edits in Object Storage V1 (Phonograph) is deleted and future builds of the writeback dataset will fail.

    In addition to the changes that require unregistering that were listed in the previous section, unregistering is required for object types with writeback when schema changes are made to any property of an object type that has ever received edits, even if it does not currently receive edits. Schema changes include changes to the ID and base type of a property.

    The following changes do not require unregistering and therefore do not risk losing the edit history:

    • Changing the display name, title key, render hints, type classes, and visibility of a property that has received edits will not require the object type to unregister.
    • Deleting fields or making schema changes to fields that have never received edits will not require the object type to unregister, and therefore will not erase or undo edits on other fields that are receiving edits.
    Warning

    Object Storage V1 (Phonograph) will not automatically unregister the backing datasources of an object type in response to one of these schema changes. Instead, the reindex will fail and will only succeed if the saved schema changes are undone, or if you manually unregister and reregister the backing datasources of the object type in the Phonograph pane of the object type’s Datasource page.

    The properties pane in the property editor highlights whether a field has ever received edits.

    Properties pane

    Furthermore, when you try to save any changes that risk erasing the edit history, you will be warned about the potential impact on edits.

    Warning about impact on edits

    Now that you understand the considerations in editing existing object types and properties, you can safely make your changes.

    Edit an existing object type

    Navigate to an existing object type

    You can always change the object type you are working on by selecting the object type page from the home page sidebar and selecting a different object type from the list. You can also always search for a new object type in the search bar in the application header. Read more about navigation.

    Delete an object type

    You can delete an object type by selecting the ... (three dots) icon at the top right of the object type view sidebar (see image below) and then selecting the Delete option from the dropdown. A dialog will pop up to confirm you want to stage the object type and all of its associated link types for deletion.

    • Note that the deletion of the object type only takes effect after you save your changes, and will break any views or applications referencing the object type.
    • Object types with an active status cannot be deleted. Read more about statuses.
    Delete object type

    Change a backing datasource

    You can change a backing datasource with the following steps:

    1. Navigate to the property editor by selecting Edit property mapping at the top of the Properties page of an object type.
    2. Select the pen Replace button at the top of the Datasources pane. This will allow you to browse and select available datasources in Foundry.
    Warning

    Changing the backing datasource of an object type will remove any connection between columns in the old datasource and the object type’s properties. Properties will be automatically remapped for you only if you change to a new datasource with the same schema as the old datasource. Otherwise, you will need to remap the object type’s properties to the new datasource.

    Backing datasource

    Edit an object type’s metadata

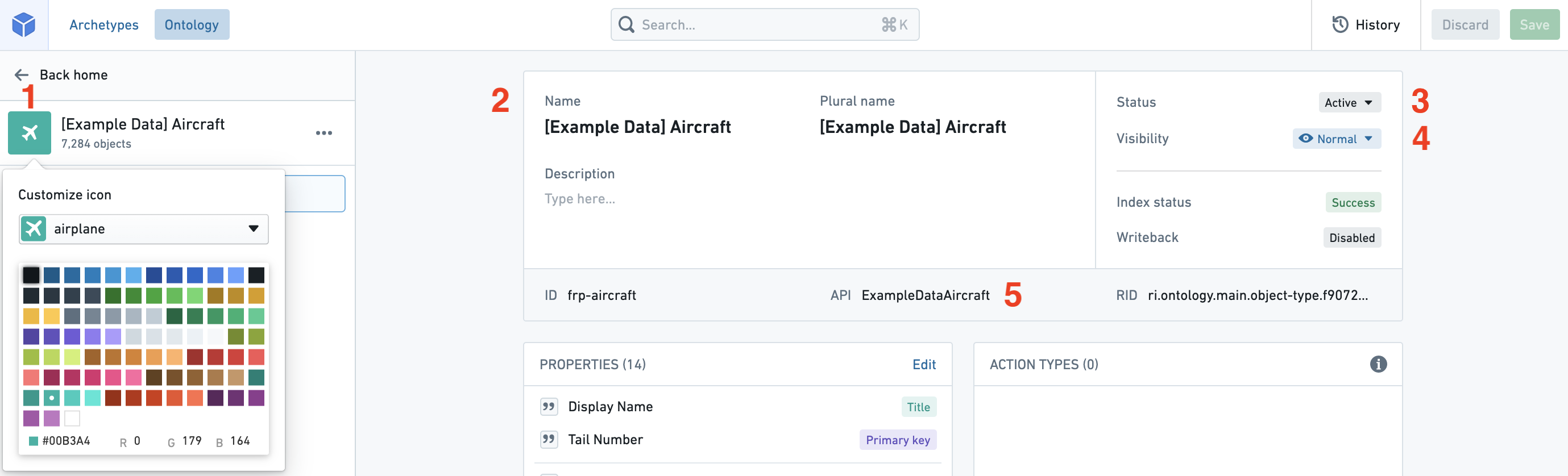

    Edit object type metadata

    1. Icon: Select the default icon to customize the icon and color of the object type that will appear in user applications when a user views an object of this type.
    2. Display names and description: Select into the existing display names or description to edit the text.
    3. Status: Select the existing status to open a dropdown of available statuses. Choose from the deprecated, experimental, and active statuses.
    4. Visibility: Select the existing visibility to open a dropdown of available visibilities. A prominent object type will lead applications to show this object type first to users. A hidden object type will not appear in user applications.
    5. API name: Select into the existing API name to change its value.
      • Note that you cannot change the API name for object types with an active status.

    The object ID of an object type cannot be edited after the initial object type creation process.

    Troubleshooting

    Error: Phonograph2:FoundryColumnNameNotFound

    If you receive the error Phonograph2:FoundryColumnNameNotFound, a column has been removed from the datasource backing the object type you are trying to save and a property is left unmapped. The property needs to either be mapped or deleted.

    Error: Phonograph2:InvalidColumnRemoval

    If you receive the error Phonograph2:InvalidColumnRemoval, a column has been removed that was backing a property that has received edits. Either the column needs to be added back to the datasource, or the object type needs to be unregistered and reregistered.

    See the section above on potential breaking changes to learn more.

    Error: Phonograph2:InvalidColumnFieldSchemaChange

    If you receive the error Phonograph2:InvalidColumnFieldSchemaChange, a property that has received edits has had its ID or key changed. Either the change needs to be reverted, or the object type needs to be unregistered and reregistered.

    See the section above on potential breaking changes to learn more.

    Error: OntologyMetadata:IncompatibleFoundryFieldSchemaForPropertyType

    If you receive the error OntologyMetadata:IncompatibleFoundryFieldSchemaForPropertyType, you are trying to save a property with a base type that is incompatible with the column type that is backing it. For example, the type of column X may been changed to “string”, but is mapped to property X of base type “integer”.

    Error: Phonograph2:SchemaMismatch

    If you receive the error Phonograph2:SchemaMismatch, you likely made an intentional change to the schema that backs the object but have have not yet updated the object's property types in Ontology Manager. Modify the Ontology by editing the property's data type to accept the new type. Publish the changes and rebuild the dataset, then initiate a re-index of the object.

    Error: FieldTypeIncompatibleWithOntologyPropertyType

    If you receive the error FieldTypeIncompatibleWithOntologyPropertyType or receive the message "Failed to Update Object Type in Phonograph", there is a mismatch between the data types in the dataset that backs your object and the data types that the ontology expects. You must ensure that any schema updates are reflected in both the dataset and the ontology.

    If you did make any intentional changes to the ontology or the dataset, communicate with the owner of the object and its backing data source to understand recent changes.
