How user edits are applied

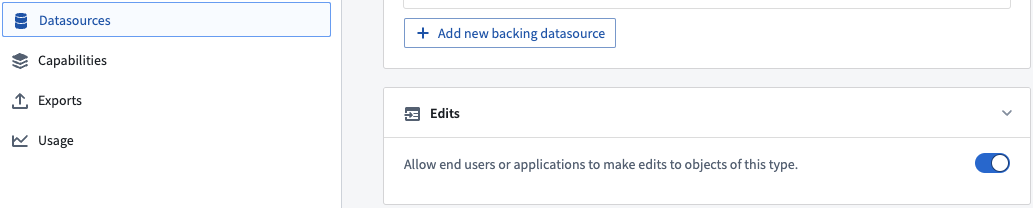

User edits can be enabled and disabled using the Edits toggle in the Datasources tab of the Ontology Manager, as shown in the screenshot below.

Edit objects via Actions

This section describes how the Ontology manages object edits with Actions.

When an Action is applied to an object, link instance, or object set, the data-modification logic is immediately applied to the index in the object databases and periodically flushed into a persistent store in the form of Foundry datasets owned and managed by Funnel. More information can be found in the documentation on persistent storage of user edits.

User edits on live data

When an Action is triggered, the Actions service sends a modification instruction to the Funnel service. This instruction is stored in a Funnel-managed queue that has offset tracking to support simultaneous user edits. Object Storage V2 tracks these offsets for any object type and any many-to-many link type with join tables. The offsets are applied to the live indexed data in the object database; if an object read occurring as part of an ontology query happens after a user modification is sent, the object read is guaranteed to contain the user edits.

How to discard/wipe/delete existing user edits

Data already containing user edits can only be updated via additional user edits. There is no mechanism to directly undo a single user edit or deletion other than to make additional user edits (for example, object actions) to update the object or to recreate the object.

In some circumstances, it may be desirable to discard all existing user edits in order to reset the state of all object instances to be the same as in the input datasource. For example, you may want to delete all user edits applied during testing of an object type before releasing the object type in production.

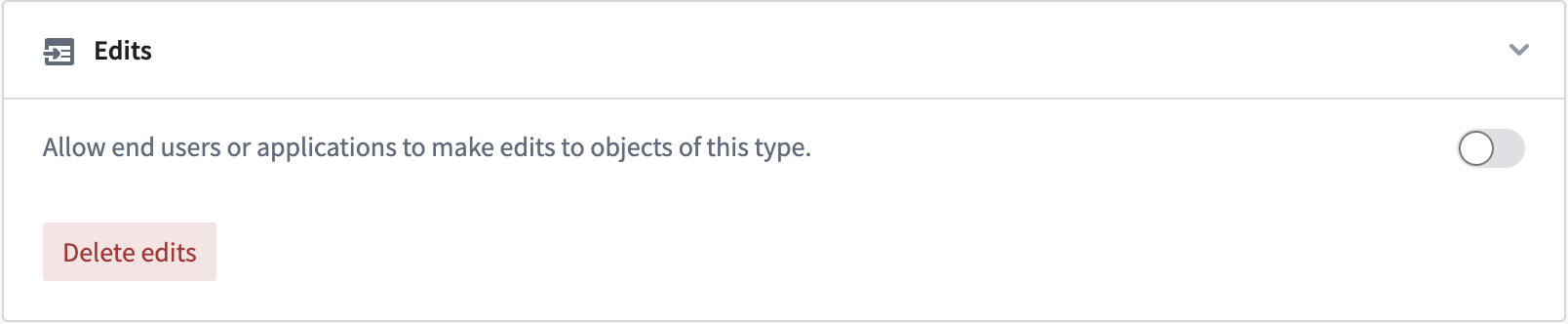

Object Storage V2 offers a schema migration framework for migrating user edits. The "drop all edits" instruction can be used to discard all existing user edits on an object type. This migration instruction can be applied by clicking the Delete edits button in the Edits section of the Datasources tab in the Ontology Manager.

Object Storage V1 (Phonograph) does not have schema migration support, but removing the writeback dataset configuration from the object type definition will delete all the existing user edits and can be used as a workaround.

Ontology entity version control

During the process of applying an Action, object type metadata information and object instance data are loaded for various purposes, such as Action validations, Functions, and Action side effects. Object instances may change over the course of applying an Action, so it is important to guarantee transactionality to avoid potential data correctness issues (such as applying the Action to the wrong version of an object instance).

The Ontology includes mechanisms for checking version consistency of both object type and object instance versions, with differing behaviors between Object Storage V1 (Phonograph) and Object Storage V2.

Entity version control between front-end consumers and the Actions server

Consider the following scenario where a user loads the object instance parameters at versions {V1, V2, V3, ...} in an Action form. The front-end consumer application calls the /apply endpoint of the Actions server with those object parameters, but that request does not include the versions. Upon receiving this request, the Actions server loads the objects within the /apply endpoint at versions {V1', V2', V3', ...}. Note that there is no guarantee that the versions {V1, V2, V3, ...} loaded on the front end and the versions {V1', V2', V3', ...} loaded by the Actions server will always be the same.

Entity version control within the Actions server

Object Storage V1 (Phonograph)

With Object Storage V1 (Phonograph), the Actions server tracks the version of a loaded object and loads the same version from the cache throughout the Action execution. When a user edit is applied in Object Storage V1 (Phonograph), the object version is included in the request. Object Storage V1 (Phonograph) then checks if any of the object versions have changed and will throw a StaleObject error if a change is detected.

These checks ensure general consistency within the Actions server. For example, Object Storage V1 guarantees that an Action will generate a synchronous webhook, execute, validate, and apply edits on the same version of an object. Note that object changes at a property level are not checked, so user edits on irrelevant properties of an object can trigger StaleObject conflicts.

Object Storage V2

With Object Storage V2, the Actions server performs its own object version checks before posting user edits to the Funnel service, but on a limited subset of the versions collected by the server as compared to Object Storage V1 (Phonograph).

The Actions server only checks the versions of objects that are directly used to generate edits, such as the version of some object A that had one of its properties copied onto object B, and these versions are only checked against edited object versions.

This behavior reduces the frequency of StaleObject conflicts, with a consequence of weaker guarantees with OSv2. In Object Storage V2, the Actions service always loads objects at the same versions throughout an Action /apply, but does not guarantee that objects read outside of edit generation have not changed during the course of an Action.

Cross-backend Actions

An Action type is considered "cross-backend" if it modifies objects in OSv1 and OSv2 at the same time. In such cases, the Actions service performs checks on:

• All read and/or edited objects in OSv1, and
• All edited objects in OSv2.

Persistent storage of user edits

All indexed data in object databases are considered ephemeral, requiring persistent storing of all Ontology data in other ways. Similarly, user edits applied through Actions also must be stored persistently. The Foundry datasources that back object types are already persistently stored in the form of Foundry datasets, restricted views, and so on.

As discussed in the Funnel pipelines documentation, the Funnel service owns and manages several Foundry datasets, including a merged dataset that combines data coming from datasources and user edits. The merged dataset is automatically built; this ensures that user edits stored in the queue are persistently stored in Foundry and that the queue is emptied in order to prevent the queue from growing too large. By default, this build job is triggered:

• Whenever there is a new data transaction in object type datasources, or
• In the absence of new data in the datasources, every 6 hours, if edits had been detected on any objects.

Resolve conflicting user edits and datasource updates

Object instances in the Foundry Ontology can be created and modified by both input datasources and user edits. When a single object instance (that is, a row or object with a specific primary key value) receives data from both the input datasource and user edits, these received values must be transparently resolved with a conflict resolution strategy.

There are two strategies for resolving conflicts:

• Strategy 1: Apply user edits (default)
• Strategy 2: Apply most recent value

Strategy 1: Apply user edits (default)

With this strategy, the final state of an object instance is always determined by the user edits applied to it, regardless of any future datasource updates for the same object instance.

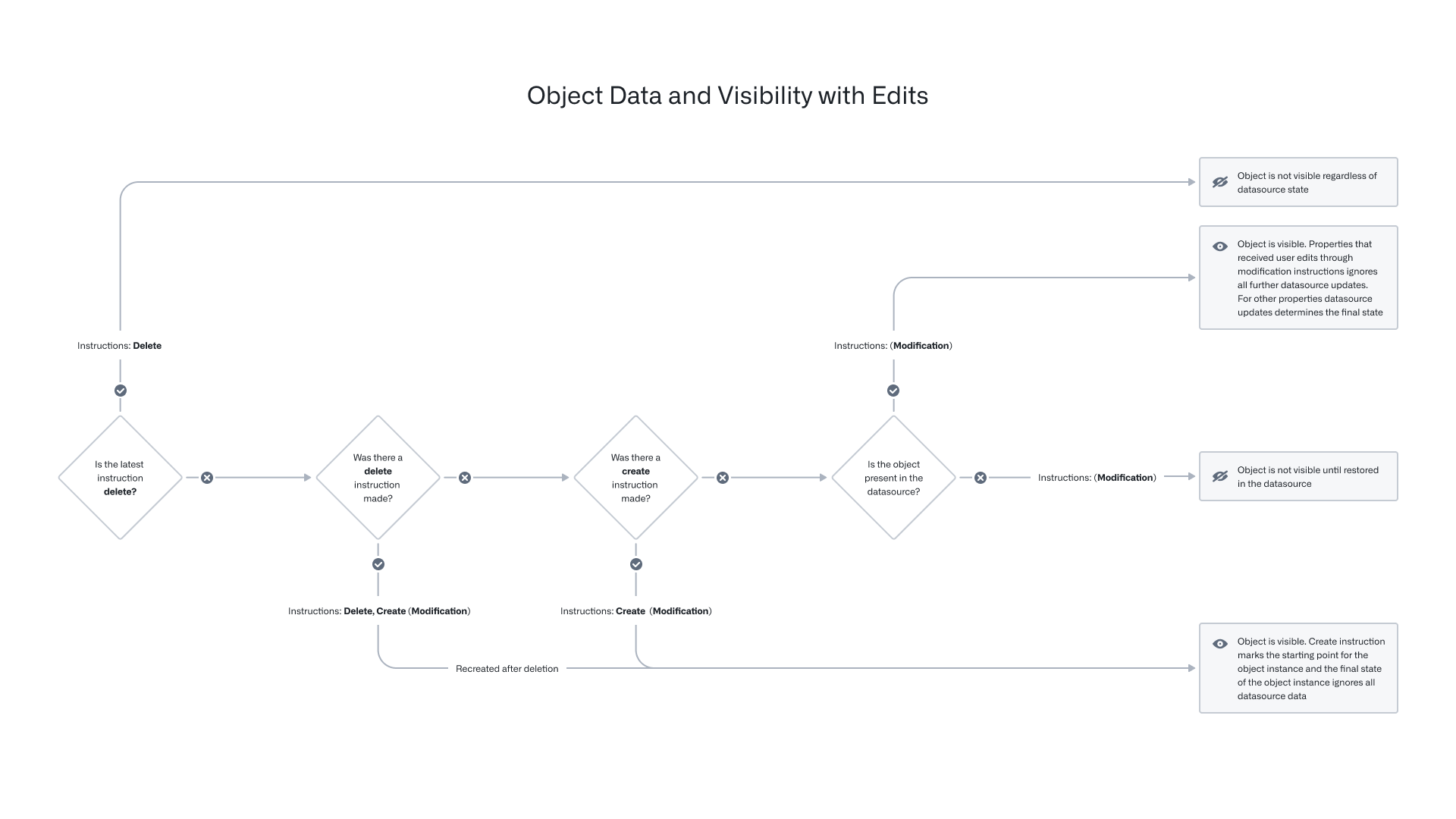

Refer to the flow chart below to determine the latest state of your object instances based on user edits and datasource updates.

The table below shows how the state of a specific object instance would be updated after receiving user edits and input datasource updates, following the "user edits always win" conflict resolution strategy.

Strategy 2: Apply most recent value

With this strategy, user edits are conditionally applied; that is, user edits are only applied if the timestamp of the user edit is more recent than the timestamp value coming from the datasource for the given object instance.

Configuration

Conflict resolution strategies are configured at the object type level and is only supported for OSv2 object types.

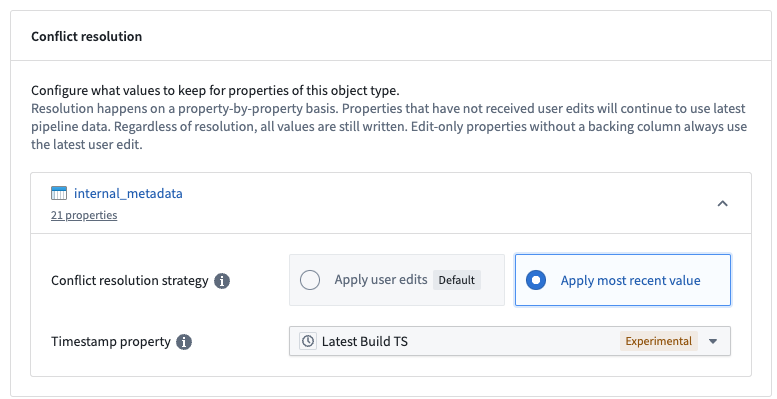

Users can configure this option in the Ontology Manager, under the Datasources section. Each datasource of the object type can have different resolution strategies. For example, for an object type backed by two datasources, one datasource can use Apply user edits (default) while the other datasource can use Apply most recent value. The Apply most recent value option requires that the datasource contains a property with the timestamp type; the date property type will not work for this option. The timestamp property is used to compare and decide whether a user edit should be applied. The timestamp property must be in Coordinated Universal Time (UTC).

Behavior

As soon as the Apply most recent value conflict resolution strategy is saved for a datasource, any future user edit will be conditionally applied for properties backed by the datasource. This works by comparing the timestamp present on the object instance with the timestamp of the most recent user edit that was applied. The user edit is applied if the object's timestamp is older than the user edit time, otherwise ignored.

If an edit updates properties across multiple datasources, then whether those edits will be conditionally applied or always applied will be determined by the resolution strategy of the datasource that backs the property.

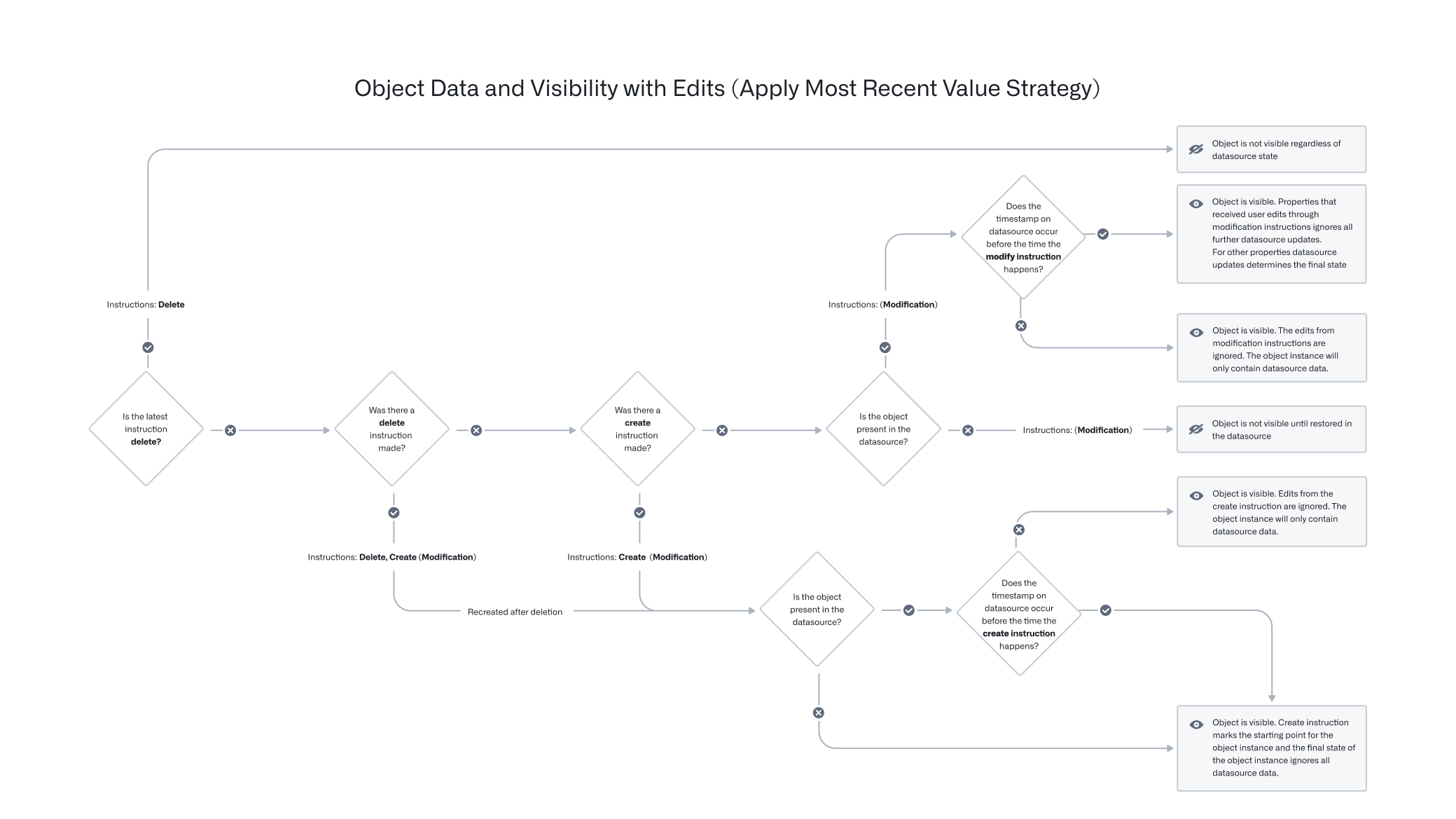

Refer to the updated flow chart below to determine the latest state of your object instances based on user edits and datasource updates.

The following example illustrates this behavior. Assume there are three object instances for a Ticket object type with the following data, where the Apply most recent value option is enabled, and there is an action type Change Priority that modifies the priority of a ticket to P0.

• If the Change Priority action is applied to Ticket One, the priority will be set to P0 as the user edit comes after the timestamp value from the datasource.
• If the Change Priority action is applied to Ticket Two, the priority will be remain as P2 as the user edit comes before the timestamp value from the datasource.
• If the Change Priority action is applied to Ticket Three, the priority will be set to P0 as the user edit always applies if the timestamp value from the datasource is not present.

Edit-only properties

For edit-only properties, user edits will always apply regardless of the timestamp on the input datasource.

Returning to the ticket example above, consider the following table:

Suppose an action type, Change team is used to modify the Team property to Recruiting. If the Change team action is applied to ticket two, the team will be set to Recruiting. Regardless of which strategy is used for resolving conflicts, since Team is an edit-only property, edits will apply.

The behavior remains the same when an Action modifies both edit-only and normal properties. Normal property edits are applied based on conditions, while edit-only property edits always apply.

Only input datasource values considered

Note that that the Ontology only compares timestamps directly from the input datasource. Even if users change the timestamp property via user edits, the conditional comparison will only happen between the timestamp from the input datasource and the user edit application time.

As a result of this behavior, the timestamp property must be backed by a timestamp column from the input datasource. If the source system does not provide a timestamp value to indicate the update time of the data feed, the timestamp column of the input datasource can be modified in the data pipeline.

Returning to the ticket example above, consider the following table:

Suppose an action type Change Timestamp is used to modify the timestamp of the above ticket to January 1, 2050.

If the Change Priority action is now applied to Ticket One, the priority will still be set to P0. Despite the timestamp of the object instance shown, the comparison will only happen between the timestamp from the input datasource and the user edit application time.
