Envelope security [Beta]

Envelope security restricts the data Foundry can load inside a Notepad document to a security boundary defined by the document's own CBAC classification and markings. When you enable envelope security on a document, the document's file markings restrict the data that can be added and viewed in the file instead of using each individual user's marking membership to determine what they can view. A Notepad document with envelope security is consistent across viewers, and you can safely export the document with a banner that accurately reflects the classification of its contents.

When to use envelope security

Apply envelope security to a document when the security of its content must be enforced and communicated independently of the scoped session a user is working in. Additionally, you can use envelope security in Notepad when you need to:

• Author a document whose content must remain at or below a specific classification, regardless of the access level of the user editing the document.
• Export a document with a banner that reflects the document's own classification, rather than the user's session-high banner.
• Share a document where the contents must be the same for every authorized viewer.

If you do not need these guarantees, use a regular Notepad document which supports the full set of widgets while filtering dynamically loaded content for each viewer based on their marking membership.

Create an envelope-secured document

Follow the instructions below to create a document with envelope security from the standard Notepad creation dialog.

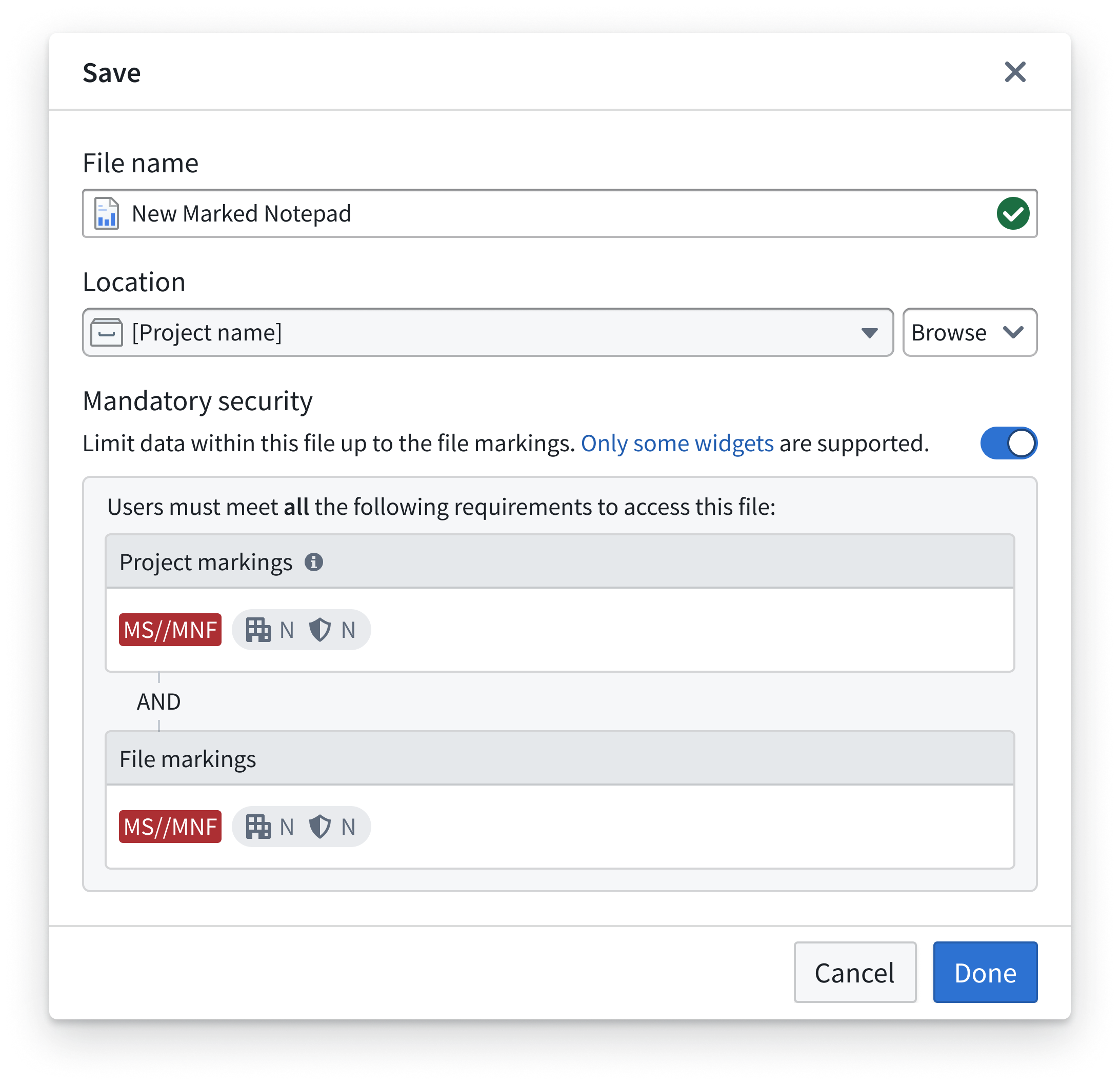

1. Select + New > Notepad document to create a new Notepad document from a Project.
2. Toggle on Mandatory security to enable envelope security. The document's classification and markings will match the project classification and project markings of the containing Project.
3. Select Done to create the document.

You cannot enable or disable envelope security after you create a document. To convert between an envelope-secured and a regular Notepad document, create a new document of the desired type. Additionally, you cannot assign classifications to an envelope-secured document that differ from those of its Project. The classification of an envelope-secured Notepad document must match the classification of its containing Project upon creation.

Just like in a regular document, after you create an envelope-secured document in Notepad you will be able to view its outline, version history, and print options.

Banner display

Envelope-secured documents display a banner derived from the document's file markings.

• When viewing the document in Notepad: Notepad renders a banner at the top of the document that is visible whenever the document is open.
• After exporting the document to PDF or Word: The exported document uses the file markings banner. The custom export banner picker is disabled for envelope-secured documents.
• When viewing the embedded document in Workshop: Workshop renders the file markings banner around the embedded document in addition to the Workshop session banner.

Supported widgets

Envelope-secured documents currently support a limited set of widgets that do not load data dynamically:

• Anchor link
• Horizontal rule
• LaTeX
• Page break
• Table
• User mention

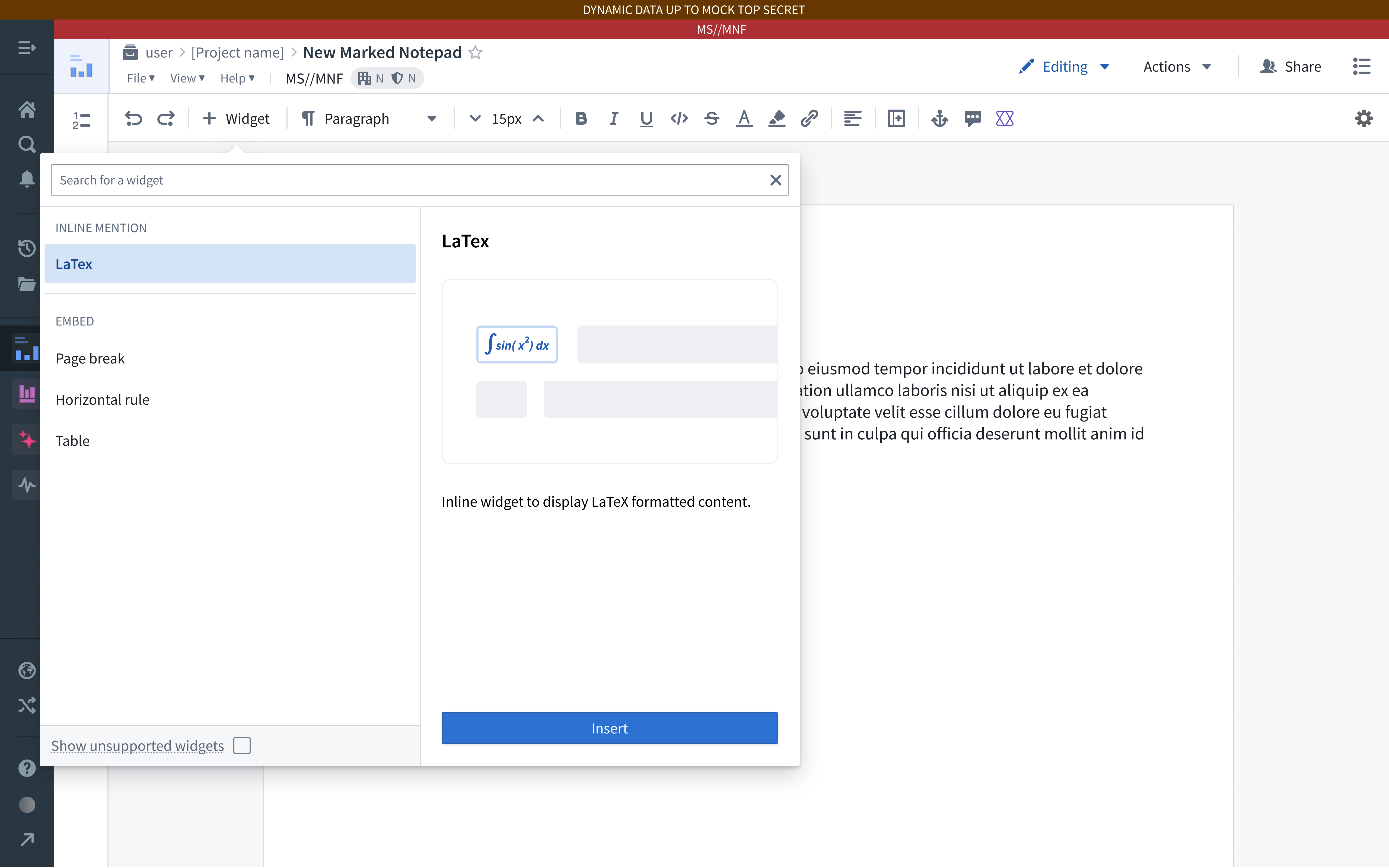

Notepad filters the + Widget menu in envelope-secured documents to display only the supported widgets listed above, including the menu used in headers and footers.

Unsupported functionality

The following Notepad features are not available in envelope-secured documents:

• Templates: You cannot create envelope-secured documents from a template, and you cannot save an envelope-secured document as a template.
• Marketplace packaging: You cannot package envelope-secured documents into a Marketplace product.
• Lock and unlock widget data: Because no data-loading widgets are supported, locking and unlocking widget data is not exposed.
• Referenced data panel: The referenced data panel in the left sidebar is hidden, since no widgets in the document load referenced resources.
• Edit with AIP and Edit with functions: AIP-based editing is disabled, as marked content cannot be passed to arbitrary functions.
• App Pairing: App Pairing is not supported, since it is used in conjunction with the unsupported Command widget.
• Add to AIP Assist: Adding envelope-secured documents to AIP Assist is not supported.
• Add automation: You cannot configure an Automate integration on envelope-secured documents.

Edit an envelope-secured document

Edit an envelope-secured document following the same workflow you use to edit a regular Notepad document, with the following differences:

• Pasting content that contains unsupported widgets, such as copying content from a regular Notepad document, removes those widgets from the pasted content.
• Notepad rejects updates that would insert unsupported widgets into the document. If a paste or other edit fails validation, the change will not be applied and the page will automatically refresh.

Duplicate and move envelope-secured documents

When you duplicate an envelope-secured Notepad document, the duplicate retains the same classification and markings as the original document, regardless of the destination Project's classification.

When you move an envelope-secured document into a different Project, the document's classification and markings remain unchanged. The document's classification must fall within the destination Project's allowed classification range, between its project classification and project maximum classification, to ensure it remains accessible.
