Join datasets

Contour offers several different boards for performing joins. This guide will teach you (1) how to use each board in order to join datasets together, (2) each board's SQL equivalencies, and (3) performance considerations.

---

Join board

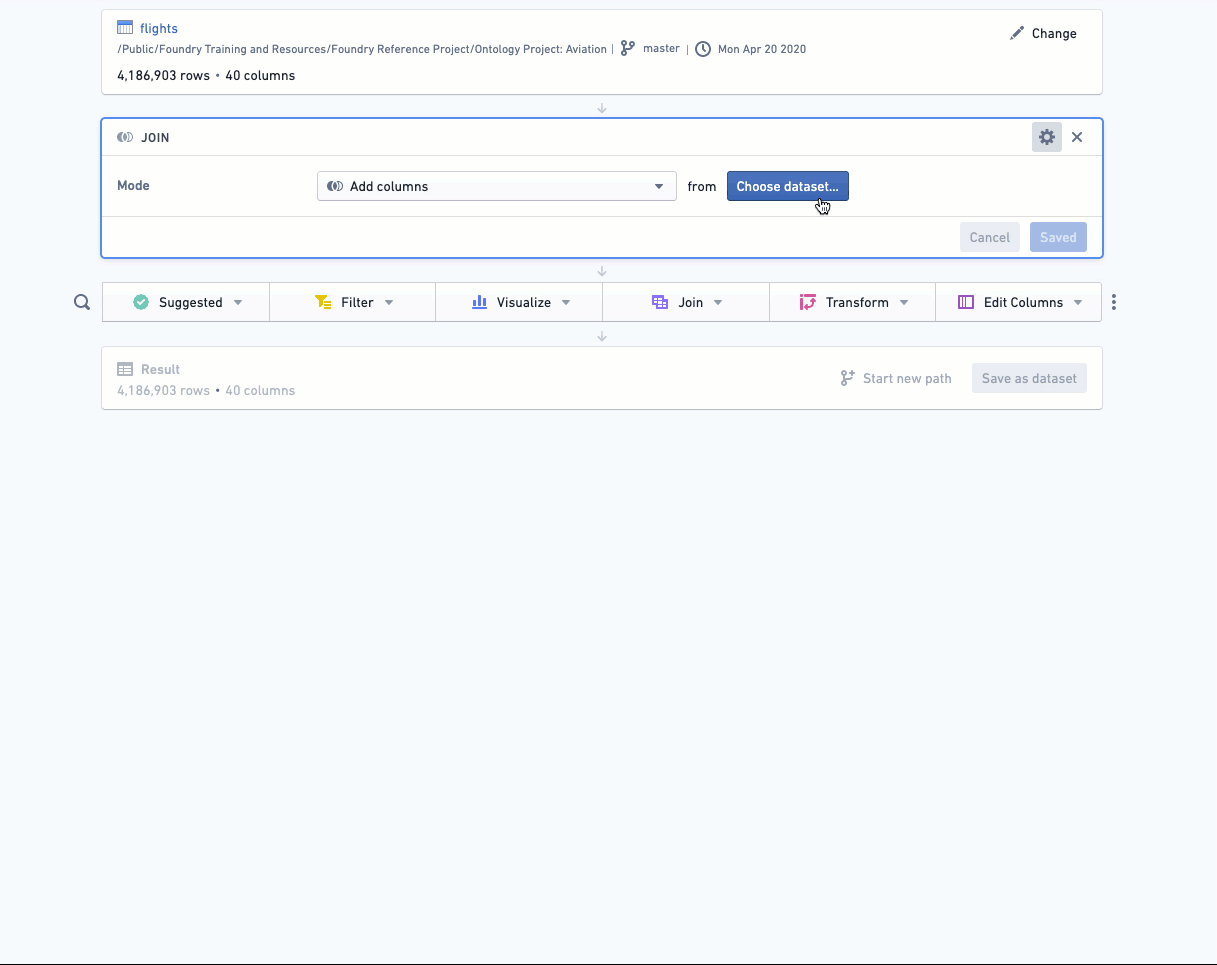

The join board lets you join your current working dataset to another dataset, and merge the matching results into your data. Here is an overview:

Example

Say you have a table with information about purchases made by customers.

You might have a second table with information on all items in your inventory:

You can use the join board to enrich your starting dataset (transactions) with information about each item purchased.

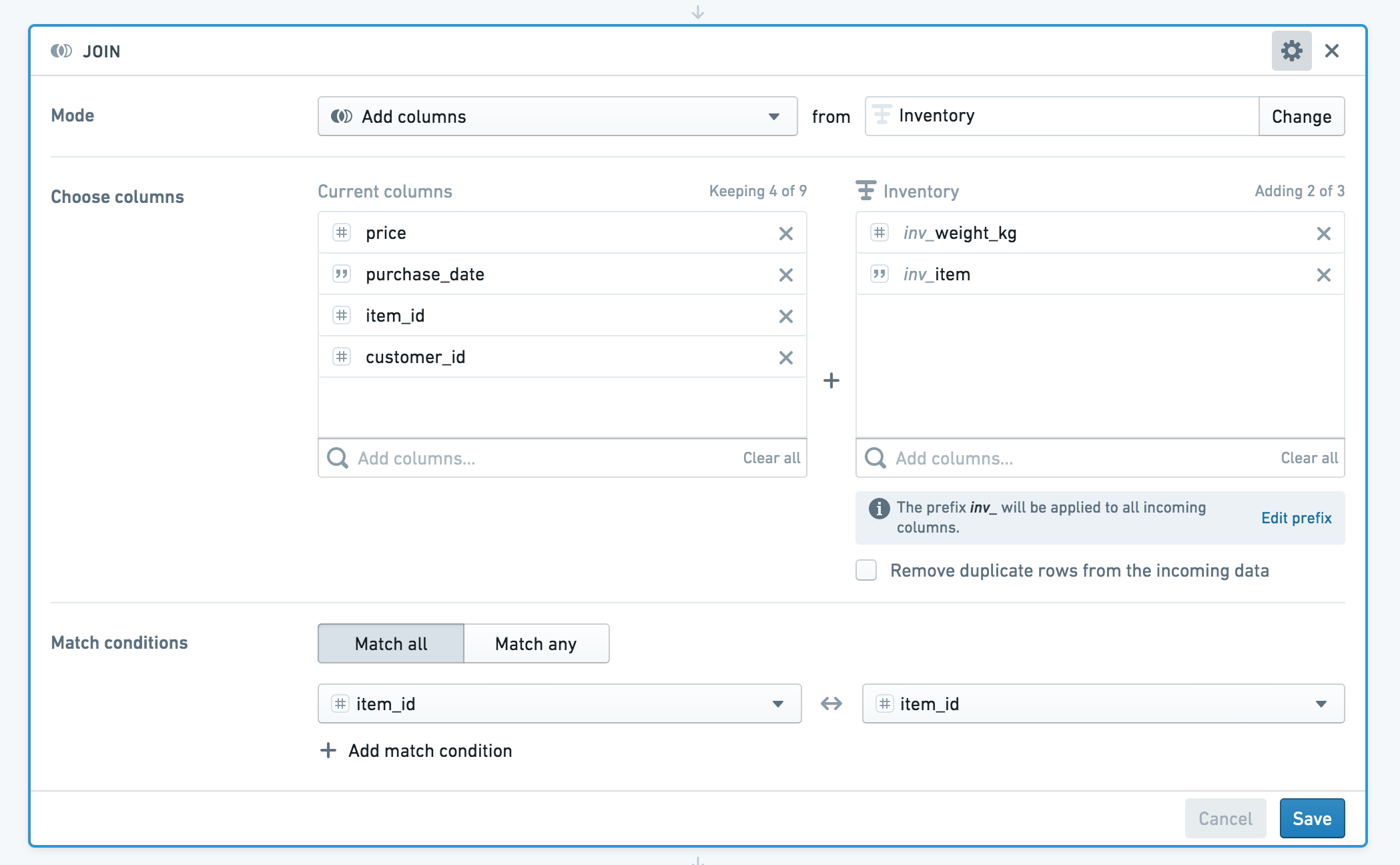

If your datasets have columns with the same name, Contour will prompt you to add a prefix to the column names. In this case, both datasets have a column called item_id. We’ll apply the prefix “inv” (for inventory) to columns from the incoming dataset.

If you do not want to add the duplicate item_id column to the resulting joined dataset, you can deselect that column from the incoming dataset.

Your enriched dataset will look like this:

Configuration of the join board

Choose a join type to perform: left join (Add columns), inner join (Intersection) , right join (Switch to dataset), or full join (Incorporate all data, matching rows where possible).

Choose which columns from the other dataset to add to your current working set. By default, all columns from the first dataset are returned.

Then choose one or more keys from each set. If you use multiple join keys, you can choose to Match Any or Match All conditions.

Note that for a full join, all rows will be returned from the two datasets; this means that the join column for either dataset may show null values, since there is no coalescing of the two columns.

---

Union board

Use the union board to alter your current dataset based on another set. You can append data from another dataset (Add rows), filter the dataset to keep only data that exists in the other dataset (Keep rows), or remove data based on data that exists in another dataset (Remove rows). You can choose to match based on the position of the column in the dataset, or column names.

We’ll use these three tables for a concrete notional example:

people

candidates

candidates_backward

We have a table of people, and want to compare it to two tables of candidates. Both tables do not have the same schema as the people table. The following sections show the resulting set, depending which comparison (set math) you perform on the tables.

Example: Add rows

Starting with the people table, if we Add rows from the candidates_backward table By name, then the resulting set looks like this:

Starting with the people table, if we Add rows from the candidates_backward table By position, then the resulting set will append the first names from the people table to the last names from the candidates_backward table, and vice versa. This is likely not desirable. The resulting set looks like this:

You would want to Add rows to the people table from the candidates table By postion because the column names do not match, but the positions of the first name and last name columns do. Notice the column name is taken from the starting set:

Example: Keep rows

Starting with the people table, if we configure the union board to Keep rows that Appear in the candidates table By position, then the resulting set looks like this:

Starting with the people table, if we configure the union board to Keep rows that Appear in the candidates_backward table By name, then the resulting set looks like this:

Example: Remove rows

Starting with the people table, if we Remove rows that Appear in the candidates table By position, then the resulting set looks like this:

Starting with the people table, if we Remove rows that Appear in the candidates_backward table By name, then the resulting set looks like this:

If we instead started with the people table and Remove rows that Appear in the candidates_backward table By position, the resulting set looks as below. Note that this table is identical to the people table as there were no rows that appeared in the candidates_backward table when matching on position.

Configuration of the union board

Choose Keep rows, Add rows, or Remove rows, then select the set you want to compare to.

For Keep rows and Remove rows, you can choose either Appear in or Match on.

• When using Appear in, you can choose either to match By position or By name.
• When using Match on, you must specify the columns to join on (one column from each set).

---

SQL equivalencies

For users who are familiar with SQL, it may be helpful to think of Contour join operations in terms of their equivalents in SQL. The following table shows which SQL join types are supported in which boards:

Join

The join operation is equivalent to the following in SQL:

Copied!
1
2
3
4
SELECT [DISTINCT] <Column1, Column2, ...>
FROM CurrentTable
<INNER JOIN | LEFT OUTER JOIN | RIGHT OUTER JOIN | FULL OUTER JOIN > OtherTable
ON <join condition 1>([AND | OR] <join condition 2> [AND | OR] <join condition 3> ...)

Union

Keep rows match on is equivalent to a Left Semi Join in SQL:

Copied!
1
2
3
SELECT L.*
FROM L INNER JOIN (SELECT DISTINCT <join column> FROM R) AS R_KEY
ON L.<join column> = R_KEY.<join column>

Remove rows match on is equivalent to a SQL Left Outer Join where the join keys do not match:

Copied!
1
2
3
4
SELECT L.*
FROM L LEFT OUTER JOIN R
ON L.<join column> = R.<join column>
WHERE R.<join column> is null

---

Data Types

When using the union board, be aware of the data types of your columns. Compatible column types will be cast. For a concrete example, let's use two datasets.

dataset1

dataset2

Starting with dataset1, if we Add rows by position from dataset2, the resulting set looks as below:

Starting with dataset1, if we Keep rows that appear in dataset2 by position, the resulting set looks as below:

Note that even though the starting set included the column ID as an int type, in the resulting set it is a long type. Keep rows that appear in uses the Intersect function in spark.

Starting with dataset1, if we Remove rows that appear in dataset2 by position, the resulting set looks as below:

Again, note that although the starting set included the column ID as an int type, in the resulting set it is a long type. Remove rows that appear in uses the Except function in spark.

---

Performance considerations

• When choosing keys for joining two tables, you should use unique IDs (like primary keys) as much as possible. We strongly advise against using foreign key joins – doing so will crash Spark.
• You should use the Save as dataset functionality after complex joins or expressions, to “save” your work before continuing. This will make downstream queries more performant because the join has been persisted to disk.

Checking the results

After joining your datasets, it's a good idea to look at a table of the joined set to check whether the results are what you expect. Select Table in the action ribbon to add a table board, and scroll through your new joined set.
