JupyterLab®

Code Workspaces enables you to use JupyterLab® ↗ in Foundry. JupyterLab® in Code Workspaces supports:

• Reading and writing tabular datasets.
• Downloading or uploading files from non-structured datasets.
• Importing Python packages from Conda or PyPI.
• Previewing Dash, Streamlit, or TensorBoard™ applications to facilitate iteration.
• Publishing Dash or Streamlit applications.
• Interacting with the Ontology.

Code Workspaces currently supports Dash ↗ and Streamlit ↗ for Python applications. Users can create applications directly in Code Workspaces with Foundry’s version control, branching, and data governance features built-in.

Dash applications

To create a Dash ↗ application, follow the instructions below:

1. Open the Applications tab in a JupyterLab® workspace.
2. Select Publish application, choose a location in your Files and Projects for your new application, and provide a module name and variable name. A file will be automatically created at the path corresponding to the provided module name.
3. Optional: Configure advanced settings. By default, the application settings will match the settings of the Jupyter® workspace.
4. Select Publish and sync to register your new Dash application and sync the code to the backing code repository. After CI checks and publishing are complete, you can select the link in the Applications panel to view the published application.

To develop locally against an existing Dash application:

1. Open a terminal window and execute your newly created file, for example, python app.py.
2. Select Preview in the Dash section of the Applications tab to preview the application.

Streamlit applications

To create a Streamlit ↗ application, follow the instructions below:

1. Select Publish application, choose a location in your Files and Projects for your new application, and enter the name of your Python file relative to the root of the repository, for example, app.py.
2. Optional: Configure advanced settings. By default, the application settings will match the settings of the JupyterLab® workspace.
3. Select Publish and sync to register your new Streamlit application and sync the code to the backing code repository. After CI checks and publishing are complete, you can select the link in the Applications panel to view the published application.

To develop locally against an existing Streamlit application:

1. Open a terminal window and run the code with Streamlit using streamlit run app-name.py.
2. Open the Applications tab in a JupyterLab® code workspace and select Preview in the Streamlit section to preview the application you are developing locally.

TensorBoard™

You can preview TensorBoard™ ↗ directly from Code Workspaces. To do this, run tensorboard --logdir=<$PATH_TO_LOGS_DIRECTORY> from a terminal, filling in the path to the directory containing TensorFlow logs. Then, open the Applications tab in a Jupyter® Workspace and select Preview in the TensorBoard™ section.

Jupyter® Notebook transforms

Code Workspaces can publish Jupyter® notebooks as data transformation pipelines and register transform JobSpecs for output datasets produced by the notebooks.

Follow the steps below to register a transform for an output dataset:

1. Save your Jupyter® notebook as a file in the workspace.

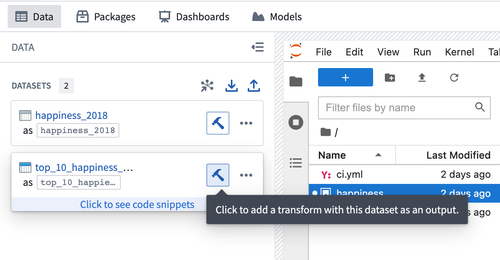

2. Select the blue Build icon next to the dataset in the Data panel.

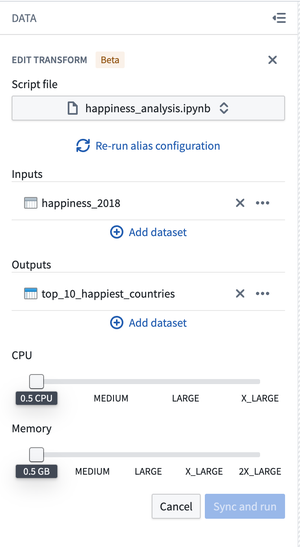

3. Follow the interface to configure your transform. Code Workspaces will infer the Jupyter® notebook used along with the inputs added to produce the output dataset. If the inference is wrong, you can manually edit the inputs and outputs.

4. Select Sync and run to save the transform configuration and trigger CI checks for publishing the transform and JobSpecs on the output dataset(s).

Once CI checks are completed, your transform is ready for build. You can use other Foundry data integration tools to manage your transform and the data pipeline to which it belongs.

!mamba install -y -q scikit-learn scikit-image

Managed Conda/PyPI environments in Jupyter® Notebooks

Jupyter® Conda/PyPI environments can be consistently restored across Jupyter® workspaces, applications, transforms, and model outputs, using the managed environment feature.

Managed environments are consistent across Code Workspace workflows, eliminating the need to re-run the same mamba and pip commands every time you restart your workspace, start a application, or run a Jupyter® Notebook transform.

With a managed environment, installed libraries in your working environment are tracked through files in your /home/user/repo folder, allowing the environment to be restored to its original state across workflows.

The following two files are used to track your managed environment:

1. /home/user/repo/.envs/maestro/meta.yaml: Known as the environment manifest, it contains the set of requested libraries and versions for your environment. Learn more about the meta.yaml file.
2. /home/user/repo/.envs/maestro/hawk.lock - Known as the environment lock file, it contains the set of resolved libraries and versions for your environment, solved from the constraints specified in the manifest. The hawk.lock file replaces conda.lock, which has been deprecated. Learn more about the hawk.lock file.

Your managed environment is installed in your /home/user/envs/default folder. This environment is restored before the following stages:

• Starting up your Jupyter® workspace
• Starting up applications produced from your workspace
• Running Jupyter® Notebook transforms produced from your workspace
• Running models

Usage

To enable this feature, toggle the Managed Conda environments experimental feature in your workspace settings, located on the left sidebar. Then, restart the workspace:

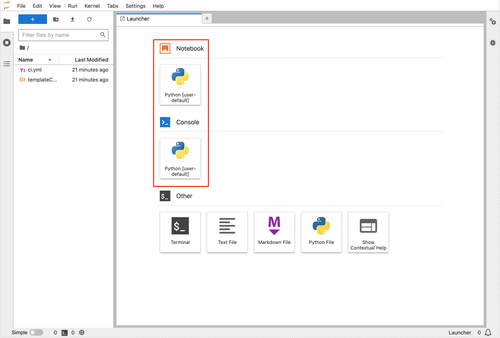

Once the feature is enabled, a managed environment named default will be available for you to use:

To update your managed environment, navigate to the Packages tab in the left sidebar and follow the instructions to add new packages.

View currently installed packages in your managed environment

Installed packages are visible in the Packages tab:

View environment files in the JupyterLab® interface

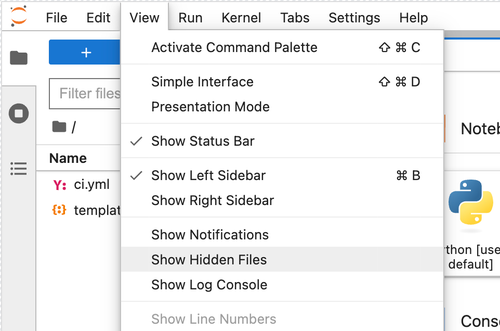

Navigate to the View dropdown menu in the workspace and select Show Hidden Files.

Then, navigate to the .envs/maestro folder to view the meta.yaml and hawk.lock files.

Synchronize your managed environment with changes to the hawk.lock file

After checking out a new branch or pulling new git changes, the contents of your hawk.lock file may change.

To synchronize your managed environment, execute the following command in your workspace terminal:

maestro env install

Resolve git conflicts to your environment files

To resolve git conflicts in your managed environment, first delete the hawk.lock file. Navigate to the meta.yaml file to resolve any conflicts, then merge your branch.

After merging, run the maestro env install command in your terminal to regenerate the hawk.lock file and reinstall your managed environment.

Upgrade your managed environment

To update your managed environment, first remove the hawk.lock file. Then, delete your /home/user/envs/default folder (rm -rf /home/user/envs/default). Finally, run the maestro env install command in your terminal to regenerate your hawk.lock file. Your environment will be re-installed with upgraded package versions.

Example: meta.yaml file

The meta.yaml file represents a specification of requested packages. This file conforms to the Conda metadata specification ↗, and can contain specifications for both Conda and PyPI dependencies. Only packages specified in the requirements.run and requirements.pip section are used for Jupyter® managed environments.

Below is an example of a meta.yaml file:

Copied!
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
package:
  name: '{{ PACKAGE_NAME }}'
  version: '{{ PACKAGE_VERSION }}'
requirements:
  build: []
  run:
    - ipykernel
    - pip
    - foundry-transforms-lib-python
    - pandas
    - polars
    - dash
    - streamlit
    - tensorboard
  pip:
    - Flask-Testing
  run_constrained: []
source:
  path: ../src
build: null
test: null
about: null

Example: hawk.lock file

The hawk.lock file contains the resolved packages, versions, and channels of a solved managed environment.

Below is an example of a hawk.lock file:

# This file is autogenerated. Though not necessary, it can be committed to the git repository.
# To avoid build failures, we do not recommend changing this file,

[conda]
_libgcc_mutex=0.1=conda_forge @ 16fe1c80
_openmp_mutex=4.5=2_gnu @ 16fe1c80
absl-py=2.1.0=pyhd8ed1ab_0 @ c7211bb6
altair=5.3.0=pyhd8ed1ab_0 @ c7211bb6
asttokens=2.4.1=pyhd8ed1ab_0 @ c7211bb6
attrs=23.2.0=pyh71513ae_0 @ c7211bb6
aws-c-auth=0.7.22=h96bc93b_2 @ e1c11c02
aws-c-cal=0.6.14=h88a6e22_1 @ e1c11c02
aws-c-common=0.9.19=h4ab18f5_0 @ e1c11c02
aws-c-compression=0.2.18=h83b837d_6 @ e1c11c02
aws-c-event-stream=0.4.2=ha47c788_12 @ e1c11c02
aws-c-http=0.8.1=h29d6fba_17 @ e1c11c02
aws-c-io=0.14.8=h21d4f22_5 @ e1c11c02
aws-c-mqtt=0.10.4=h759edc4_4 @ e1c11c02
aws-c-s3=0.5.9=h594631b_3 @ e1c11c02
aws-c-sdkutils=0.1.16=h83b837d_2 @ e1c11c02
aws-checksums=0.1.18=h83b837d_6 @ e1c11c02
aws-crt-cpp=0.26.9=he3a8b3b_0 @ e1c11c02
aws-sdk-cpp=1.11.329=hba8bd5f_3 @ e1c11c02
blinker=1.8.2=pyhd8ed1ab_0 @ c7211bb6
brotli-python=1.1.0=py310hc6cd4ac_1 @ e1c11c02
bzip2=1.0.8=hd590300_5 @ e1c11c02
c-ares=1.28.1=hd590300_0 @ e1c11c02
ca-certificates=2024.7.4=hbcca054_0 @ e1c11c02
cachetools=5.3.3=pyhd8ed1ab_0 @ c7211bb6
certifi=2024.7.4=pyhd8ed1ab_0 @ c7211bb6
cffi=1.16.0=py310h2fee648_0 @ e1c11c02
charset-normalizer=3.3.2=pyhd8ed1ab_0 @ c7211bb6
click=8.1.7=unix_pyh707e725_0 @ c7211bb6
comm=0.2.2=pyhd8ed1ab_0 @ c7211bb6
conjure-python-client=2.8.0=pyhd8ed1ab_0 @ c7211bb6
dash=2.17.1=pyhd8ed1ab_0 @ c7211bb6
debugpy=1.8.2=py310h76e45a6_0 @ e1c11c02
decorator=5.1.1=pyhd8ed1ab_0 @ fe451c34
exceptiongroup=1.2.0=pyhd8ed1ab_2 @ c7211bb6
executing=2.0.1=pyhd8ed1ab_0 @ c7211bb6
flask=3.0.3=pyhd8ed1ab_0 @ c7211bb6
foundry-data-sidecar-api=0.626.0=py_0 @ fe451c34
foundry-transforms-lib-python=0.639.0=py_0 @ fe451c34
freetype=2.12.1=h267a509_2 @ e1c11c02
gflags=2.2.2=he1b5a44_1004 @ 16fe1c80
gitdb=4.0.11=pyhd8ed1ab_0 @ c7211bb6
gitpython=3.1.43=pyhd8ed1ab_0 @ c7211bb6
glog=0.7.1=hbabe93e_0 @ e1c11c02
grpcio=1.62.2=py310h1b8f574_0 @ e1c11c02
h2=4.1.0=pyhd8ed1ab_0 @ fe451c34
hpack=4.0.0=pyh9f0ad1d_0 @ fe451c34
hyperframe=6.0.1=pyhd8ed1ab_0 @ fe451c34
idna=3.7=pyhd8ed1ab_0 @ c7211bb6
importlib-metadata=7.2.1=pyha770c72_0 @ c7211bb6
importlib_metadata=7.2.1=hd8ed1ab_0 @ c7211bb6
importlib_resources=6.4.0=pyhd8ed1ab_0 @ c7211bb6
ipykernel=6.29.5=pyh3099207_0 @ c7211bb6
ipython=8.26.0=pyh707e725_0 @ c7211bb6
ipywidgets=8.1.3=pyhd8ed1ab_0 @ c7211bb6
itsdangerous=2.2.0=pyhd8ed1ab_0 @ c7211bb6
jedi=0.19.1=pyhd8ed1ab_0 @ c7211bb6
jinja2=3.1.4=pyhd8ed1ab_0 @ c7211bb6
jsonschema=4.23.0=pyhd8ed1ab_0 @ c7211bb6
jsonschema-specifications=2023.12.1=pyhd8ed1ab_0 @ c7211bb6
jupyter_client=8.6.2=pyhd8ed1ab_0 @ c7211bb6
jupyter_core=5.7.2=py310hff52083_0 @ e1c11c02
jupyterlab_widgets=3.0.11=pyhd8ed1ab_0 @ c7211bb6
keyutils=1.6.1=h166bdaf_0 @ 16fe1c80
krb5=1.21.3=h659f571_0 @ e1c11c02
lcms2=2.16=hb7c19ff_0 @ e1c11c02
ld_impl_linux-64=2.40=hf3520f5_7 @ e1c11c02
lerc=4.0.0=h27087fc_0 @ 16fe1c80
libabseil=20240116.2=cxx17_h59595ed_0 @ e1c11c02
libarrow=16.1.0=hcb6531f_6_cpu @ e1c11c02
libarrow-acero=16.1.0=hac33072_6_cpu @ e1c11c02
libarrow-dataset=16.1.0=hac33072_6_cpu @ e1c11c02
libarrow-substrait=16.1.0=h7e0c224_6_cpu @ e1c11c02
libblas=3.9.0=22_linux64_openblas @ e1c11c02
libbrotlicommon=1.1.0=hd590300_1 @ e1c11c02
libbrotlidec=1.1.0=hd590300_1 @ e1c11c02
libbrotlienc=1.1.0=hd590300_1 @ e1c11c02
libcblas=3.9.0=22_linux64_openblas @ e1c11c02
libcrc32c=1.1.2=h9c3ff4c_0 @ 16fe1c80
libcurl=8.8.0=hca28451_1 @ e1c11c02
libdeflate=1.20=hd590300_0 @ e1c11c02
libedit=3.1.20191231=he28a2e2_2 @ 16fe1c80
libev=4.33=hd590300_2 @ e1c11c02
libevent=2.1.12=hf998b51_1 @ e1c11c02
libffi=3.4.2=h7f98852_5 @ 16fe1c80
libgcc-ng=14.1.0=h77fa898_0 @ e1c11c02
libgfortran-ng=14.1.0=h69a702a_0 @ e1c11c02
libgfortran5=14.1.0=hc5f4f2c_0 @ e1c11c02
libgomp=14.1.0=h77fa898_0 @ e1c11c02
libgoogle-cloud=2.24.0=h2736e30_0 @ e1c11c02
libgoogle-cloud-storage=2.24.0=h3d9a0c8_0 @ e1c11c02
libgrpc=1.62.2=h15f2491_0 @ e1c11c02
libjpeg-turbo=3.0.0=hd590300_1 @ e1c11c02
liblapack=3.9.0=22_linux64_openblas @ e1c11c02
libnghttp2=1.58.0=h47da74e_1 @ e1c11c02
libnsl=2.0.1=hd590300_0 @ e1c11c02
libopenblas=0.3.27=pthreads_hac2b453_1 @ e1c11c02
libparquet=16.1.0=h6a7eafb_6_cpu @ e1c11c02
libpng=1.6.43=h2797004_0 @ e1c11c02
libprotobuf=4.25.3=h08a7969_0 @ e1c11c02
libre2-11=2023.09.01=h5a48ba9_2 @ e1c11c02
libsodium=1.0.18=h36c2ea0_1 @ 16fe1c80
libssh2=1.11.0=h0841786_0 @ e1c11c02
libstdcxx-ng=14.1.0=hc0a3c3a_0 @ e1c11c02
libthrift=0.19.0=hb90f79a_1 @ e1c11c02
libtiff=4.6.0=h1dd3fc0_3 @ e1c11c02
libutf8proc=2.8.0=h166bdaf_0 @ 16fe1c80
libuuid=2.38.1=h0b41bf4_0 @ e1c11c02
libwebp-base=1.4.0=hd590300_0 @ e1c11c02
libxcb=1.15=h0b41bf4_0 @ e1c11c02
libzlib=1.2.13=h4ab18f5_6 @ e1c11c02
lz4-c=1.9.4=hcb278e6_0 @ e1c11c02
markdown=3.6=pyhd8ed1ab_0 @ c7211bb6
markdown-it-py=3.0.0=pyhd8ed1ab_0 @ c7211bb6
markupsafe=2.1.5=py310h2372a71_0 @ e1c11c02
matplotlib-inline=0.1.7=pyhd8ed1ab_0 @ c7211bb6
mdurl=0.1.2=pyhd8ed1ab_0 @ c7211bb6
ncurses=6.2=h58526e2_4 @ 16fe1c80
nest-asyncio=1.6.0=pyhd8ed1ab_0 @ c7211bb6
numpy=1.26.4=py310hb13e2d6_0 @ e1c11c02
openjpeg=2.5.2=h488ebb8_0 @ e1c11c02
openssl=3.3.1=h4ab18f5_1 @ e1c11c02
orc=2.0.1=h17fec99_1 @ e1c11c02
packaging=24.1=pyhd8ed1ab_0 @ c7211bb6
pandas=2.2.2=py310hf9f9076_1 @ e1c11c02
parso=0.8.4=pyhd8ed1ab_0 @ c7211bb6
pexpect=4.9.0=pyhd8ed1ab_0 @ c7211bb6
pickleshare=0.7.5=py_1003 @ fe451c34
pillow=10.3.0=py310hf73ecf8_0 @ e1c11c02
pip=24.0=pyhd8ed1ab_0 @ c7211bb6
pkgutil-resolve-name=1.3.10=pyhd8ed1ab_1 @ c7211bb6
platformdirs=4.2.2=pyhd8ed1ab_0 @ c7211bb6
plotly=5.22.0=pyhd8ed1ab_0 @ c7211bb6
polars=1.1.0=py310h3af5803_0 @ e1c11c02
prompt-toolkit=3.0.47=pyha770c72_0 @ c7211bb6
protobuf=4.25.3=py310ha8c1f0e_0 @ e1c11c02
psutil=6.0.0=py310hc51659f_0 @ e1c11c02
pthread-stubs=0.4=h36c2ea0_1001 @ 16fe1c80
ptyprocess=0.7.0=pyhd3deb0d_0 @ fe451c34
pure_eval=0.2.2=pyhd8ed1ab_0 @ fe451c34
pyarrow=16.1.0=py310h17c5347_1 @ e1c11c02
pyarrow-core=16.1.0=py310h6f79a3a_1_cpu @ e1c11c02
pycparser=2.22=pyhd8ed1ab_0 @ c7211bb6
pydeck=0.8.0=pyhd8ed1ab_0 @ fe451c34
pygments=2.18.0=pyhd8ed1ab_0 @ c7211bb6
pysocks=1.7.1=pyha2e5f31_6 @ fe451c34
python=3.10.2=h543edf9_0_cpython @ 16fe1c80
python-dateutil=2.9.0=pyhd8ed1ab_0 @ c7211bb6
python-tzdata=2024.1=pyhd8ed1ab_0 @ c7211bb6
python_abi=3.10=4_cp310 @ e1c11c02
pytz=2024.1=pyhd8ed1ab_0 @ c7211bb6
pyyaml=6.0.1=py310h2372a71_1 @ e1c11c02
pyzmq=26.0.3=py310h6883aea_0 @ e1c11c02
re2=2023.09.01=h7f4b329_2 @ e1c11c02
readline=8.1=h46c0cb4_0 @ 16fe1c80
referencing=0.35.1=pyhd8ed1ab_0 @ c7211bb6
requests=2.32.3=pyhd8ed1ab_0 @ c7211bb6
retrying=1.3.3=py_2 @ fe451c34
rich=13.7.1=pyhd8ed1ab_0 @ c7211bb6
rpds-py=0.19.0=py310h42e942d_0 @ e1c11c02
s2n=1.4.15=he19d79f_0 @ e1c11c02
setuptools=70.1.1=pyhd8ed1ab_0 @ c7211bb6
six=1.16.0=pyh6c4a22f_0 @ fe451c34
smmap=5.0.0=pyhd8ed1ab_0 @ fe451c34
snappy=1.2.1=ha2e4443_0 @ e1c11c02
sqlite=3.37.0=h9cd32fc_0 @ 16fe1c80
stack_data=0.6.2=pyhd8ed1ab_0 @ c7211bb6
streamlit=1.36.0=pyhd8ed1ab_0 @ c7211bb6
tenacity=8.5.0=pyhd8ed1ab_0 @ c7211bb6
tensorboard=2.17.0=pyhd8ed1ab_0 @ c7211bb6
tensorboard-data-server=0.7.0=py310h75e40e8_1 @ e1c11c02
tk=8.6.13=noxft_h4845f30_101 @ e1c11c02
toml=0.10.2=pyhd8ed1ab_0 @ fe451c34
toolz=0.12.1=pyhd8ed1ab_0 @ c7211bb6
tornado=6.4.1=py310hc51659f_0 @ e1c11c02
traitlets=5.14.3=pyhd8ed1ab_0 @ c7211bb6
typing-extensions=4.12.2=hd8ed1ab_0 @ c7211bb6
typing_extensions=4.12.2=pyha770c72_0 @ c7211bb6
tzdata=2024a=h0c530f3_0 @ c7211bb6
tzlocal=5.2=py310hff52083_0 @ e1c11c02
urllib3=2.2.2=pyhd8ed1ab_1 @ c7211bb6
validators=0.31.0=pyhd8ed1ab_0 @ c7211bb6
watchdog=4.0.1=py310hff52083_0 @ e1c11c02
wcwidth=0.2.13=pyhd8ed1ab_0 @ c7211bb6
werkzeug=3.0.3=pyhd8ed1ab_0 @ c7211bb6
wheel=0.43.0=pyhd8ed1ab_1 @ c7211bb6
widgetsnbextension=4.0.11=pyhd8ed1ab_0 @ c7211bb6
xorg-libxau=1.0.11=hd590300_0 @ e1c11c02
xorg-libxdmcp=1.1.3=h7f98852_0 @ 16fe1c80
xz=5.2.6=h166bdaf_0 @ 16fe1c80
yaml=0.2.5=h7f98852_2 @ 16fe1c80
zeromq=4.3.5=h75354e8_4 @ e1c11c02
zipp=3.19.2=pyhd8ed1ab_0 @ c7211bb6
zlib=1.2.13=h4ab18f5_6 @ e1c11c02
zstandard=0.22.0=py310hab88d88_1 @ e1c11c02
zstd=1.5.6=ha6fb4c9_0 @ e1c11c02

[pip]
brotli==1.1.0
importlib-resources==6.4.0
jupyter-client==8.6.2
jupyter-core==5.7.2
jupyterlab-widgets==3.0.11
pure-eval==0.2.2
stack-data==0.6.2

[conda-metadata]
16fe1c80 - linux-64 @ tar.bz2 @ ri.artifacts.repository.bundle.jupyter-default-environment
c7211bb6 - noarch @ conda @ ri.artifacts.repository.bundle.jupyter-default-environment
e1c11c02 - linux-64 @ conda @ ri.artifacts.repository.bundle.jupyter-default-environment
fe451c34 - noarch @ tar.bz2 @ ri.artifacts.repository.bundle.jupyter-default-environment

[conda lock version]
v3 - 0454ce4598cd475c502df1fe8a15b86ddae33cd74f97c833cb35f122e7555dfe

Jupyter®, JupyterLab®, and the Jupyter® logos are trademarks or registered trademarks of NumFOCUS.

TensorBoard and any related marks are trademarks of Google Inc.

All third-party trademarks (including logos and icons) referenced remain the property of their respective owners. No affiliation or endorsement is implied.
